Pair Y Branch Splitter Cable (M/2F) and (F/2M) Solar Panel Cable MC4

  • Sale
  • $10.00
  • Regular price $16.99
Tax included.

Pair Y Branch Splitter Cable (M/2F) and (F/2M) Solar Panel Cable MC4 | PV System Wire and Assembly Solar Panel Cable Splitter Connector

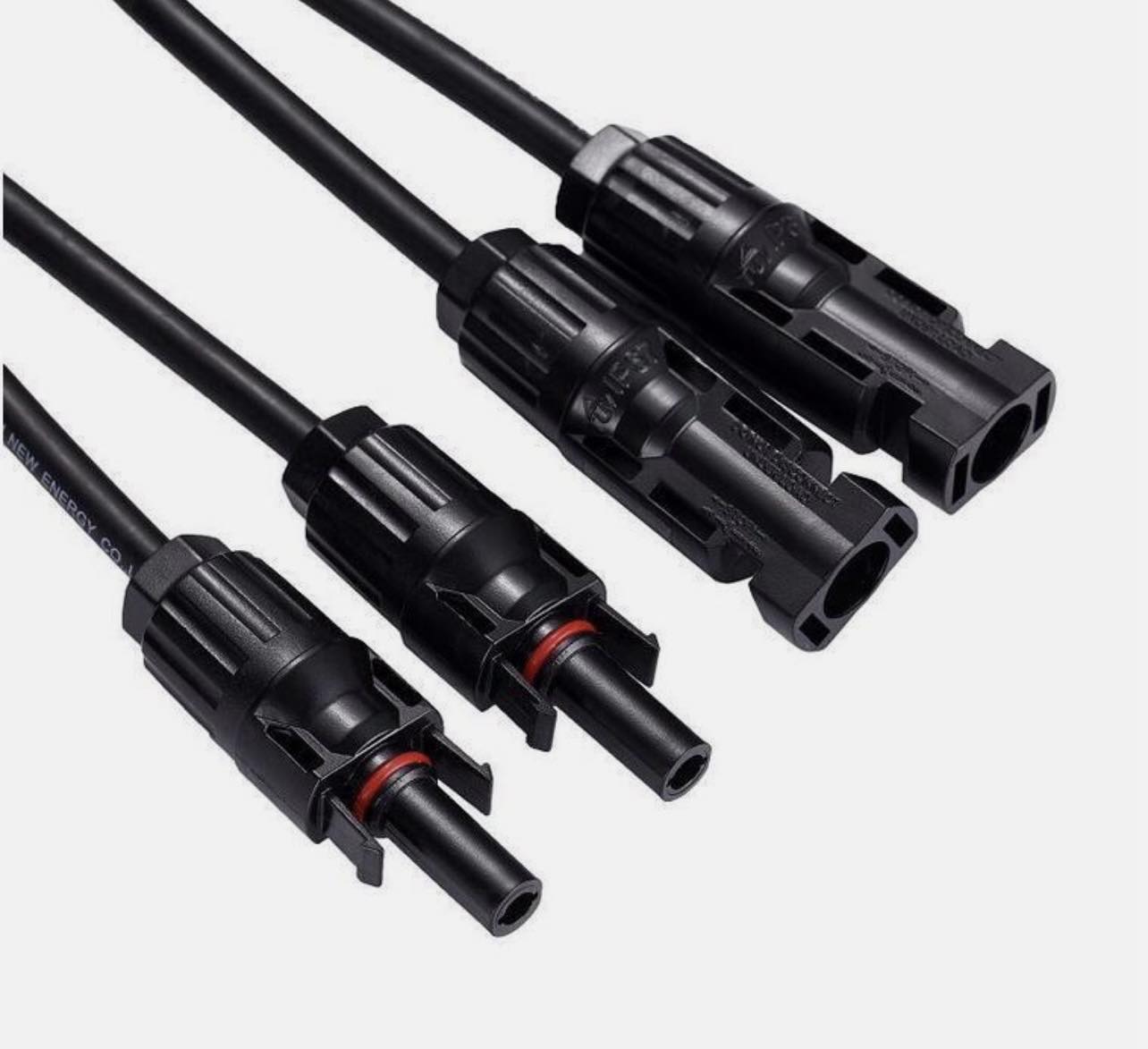

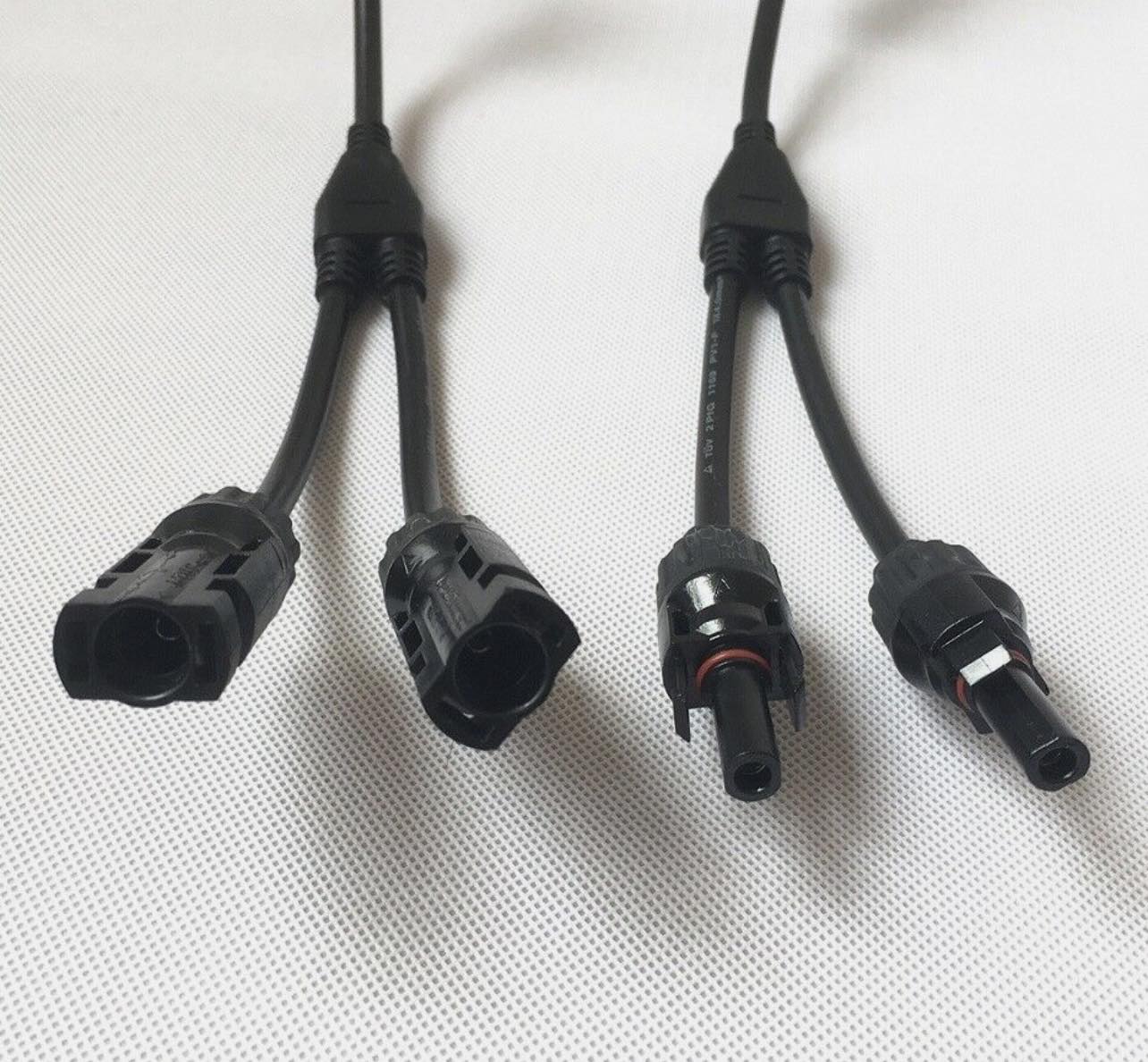

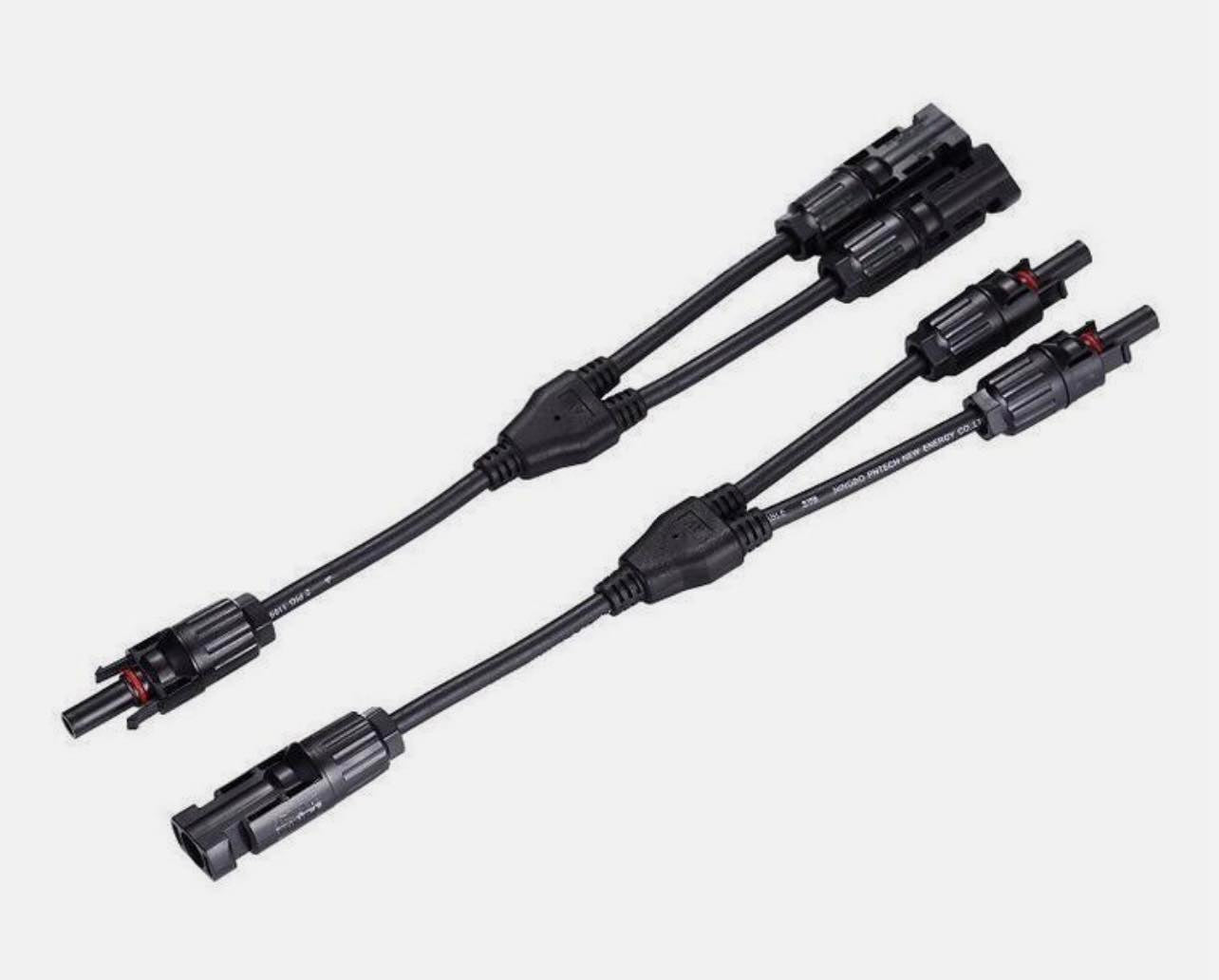

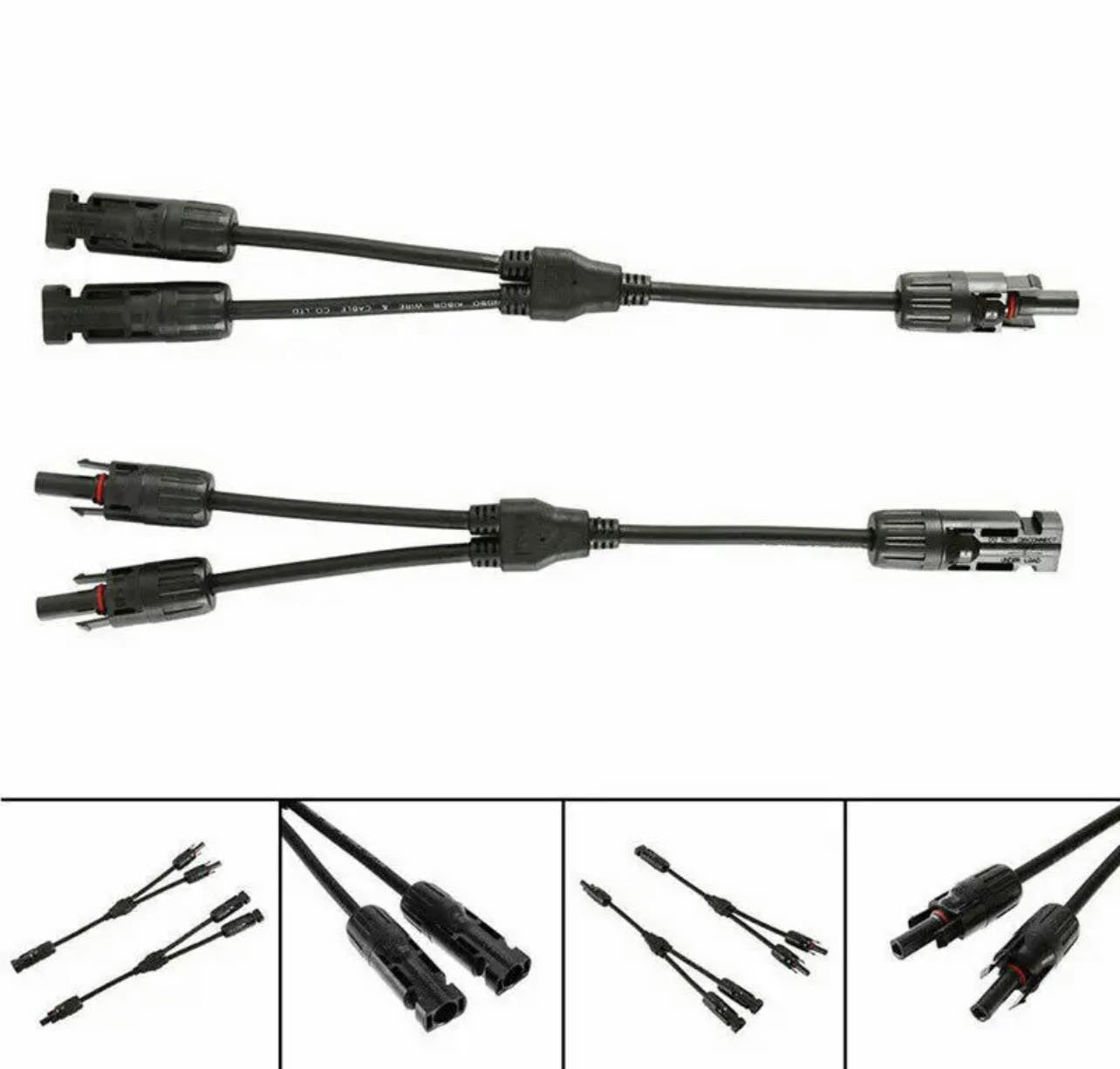

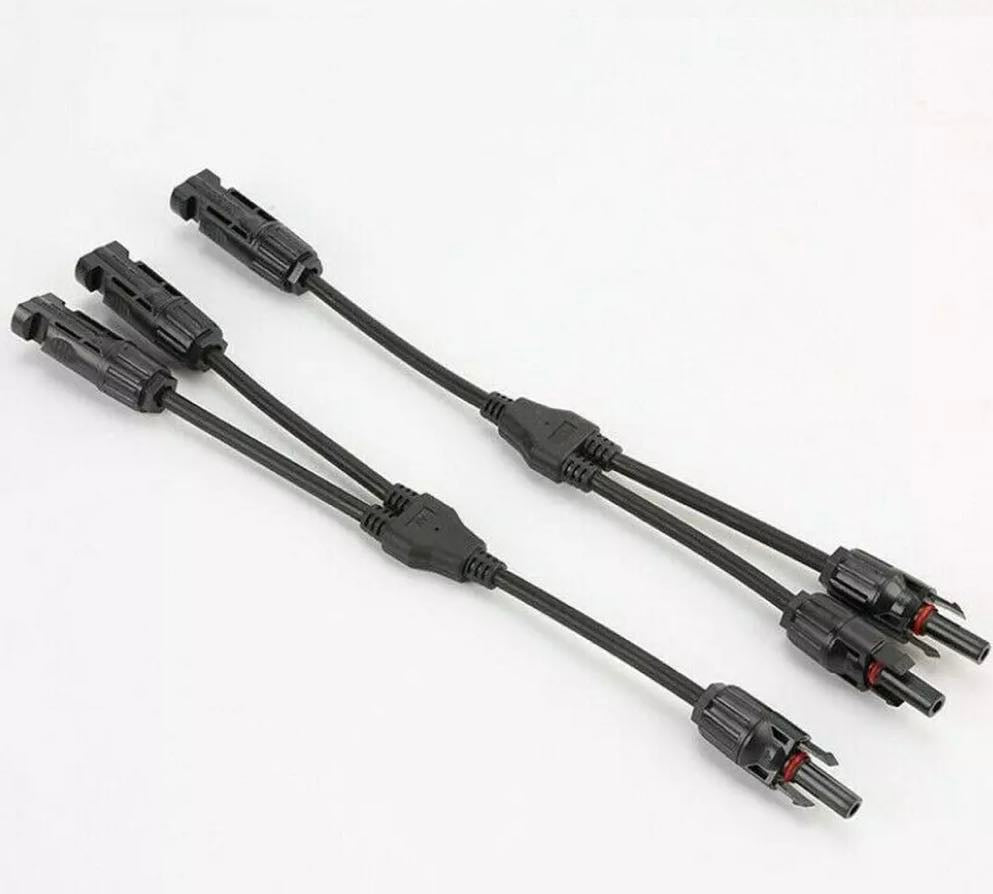

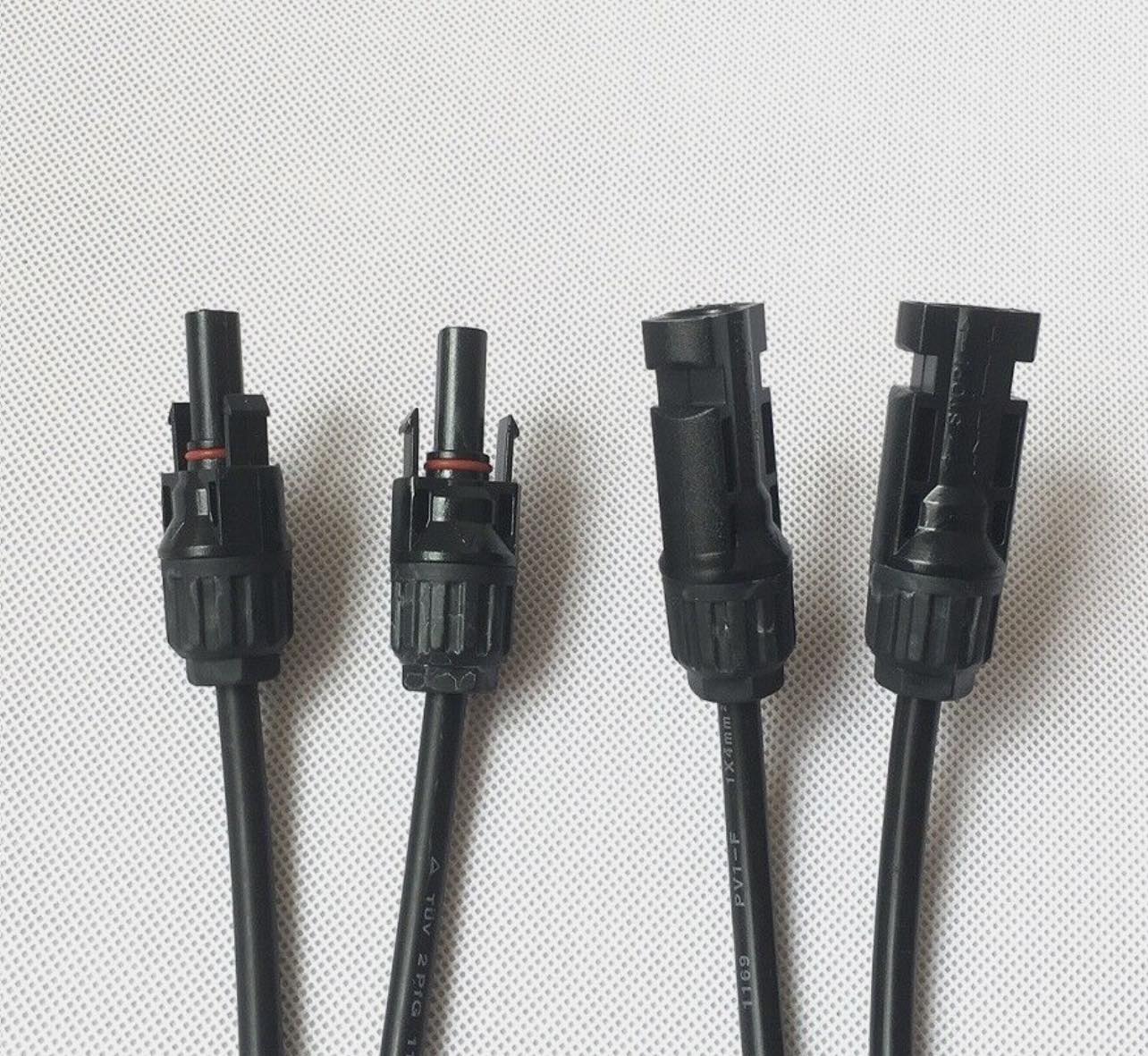

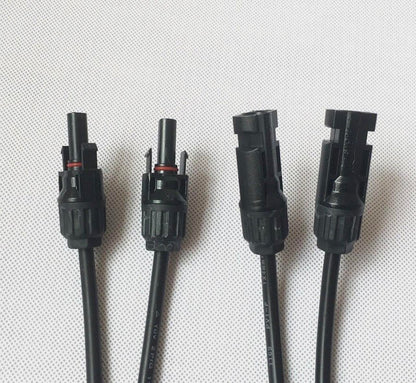

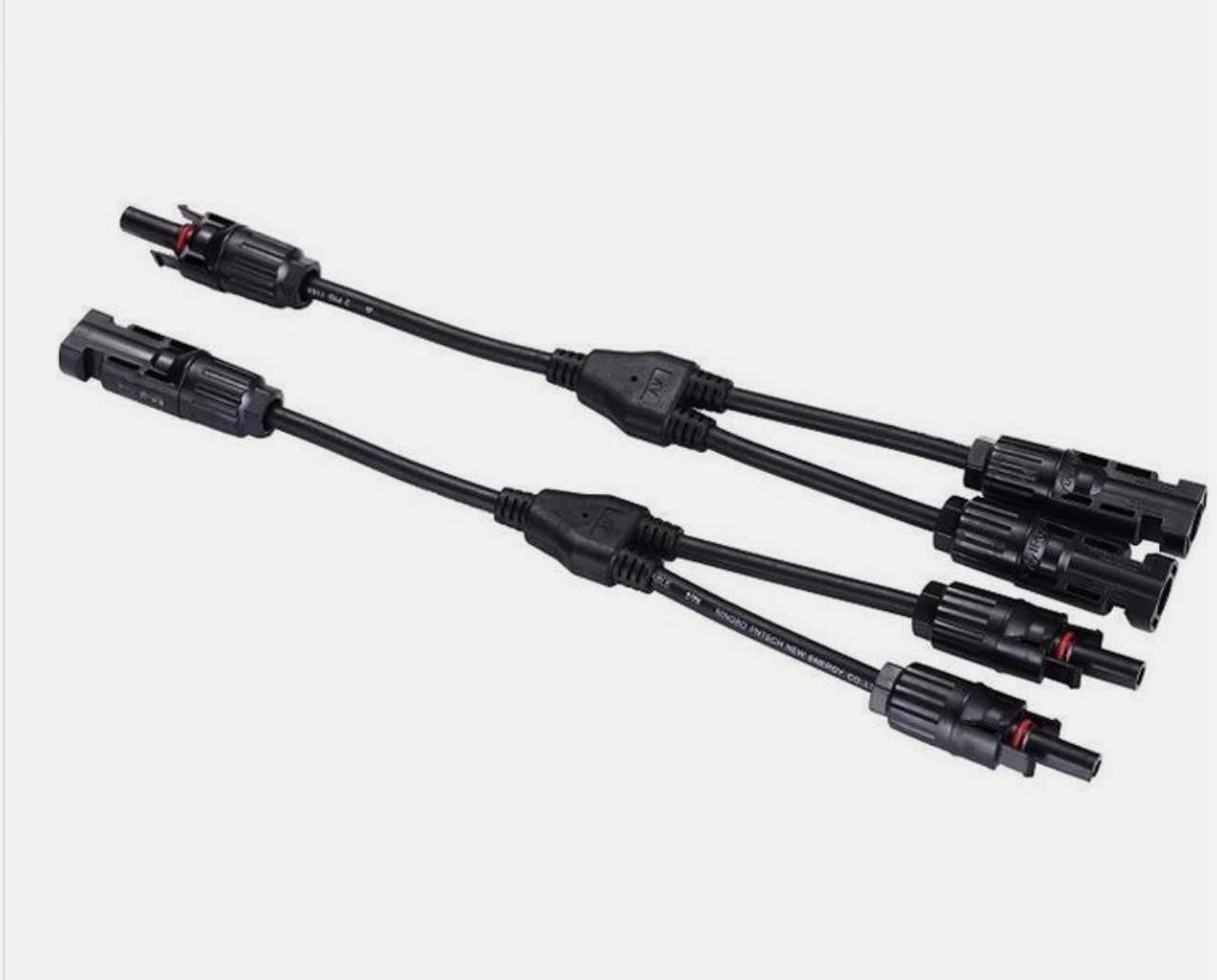

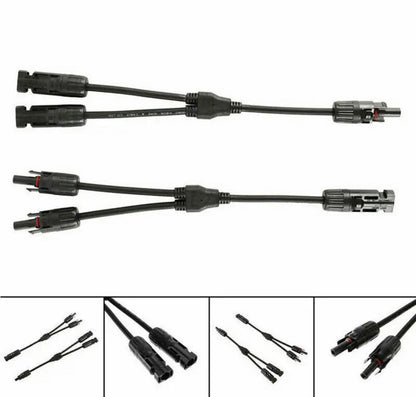

  • Pair Y Branch Splitter Cable 1 Male to 2 Female (M/2F) and 1 Female to 2 Male (F/2M)
  • The connector is specifically designed for connecting Photovoltaic solar systems with high mechanical requirements and extreme weather conditions.
  • IP67 Rated. The connector body made by professional photovoltaic plastic material for anti-aging and resistance to ultraviolet radiation.

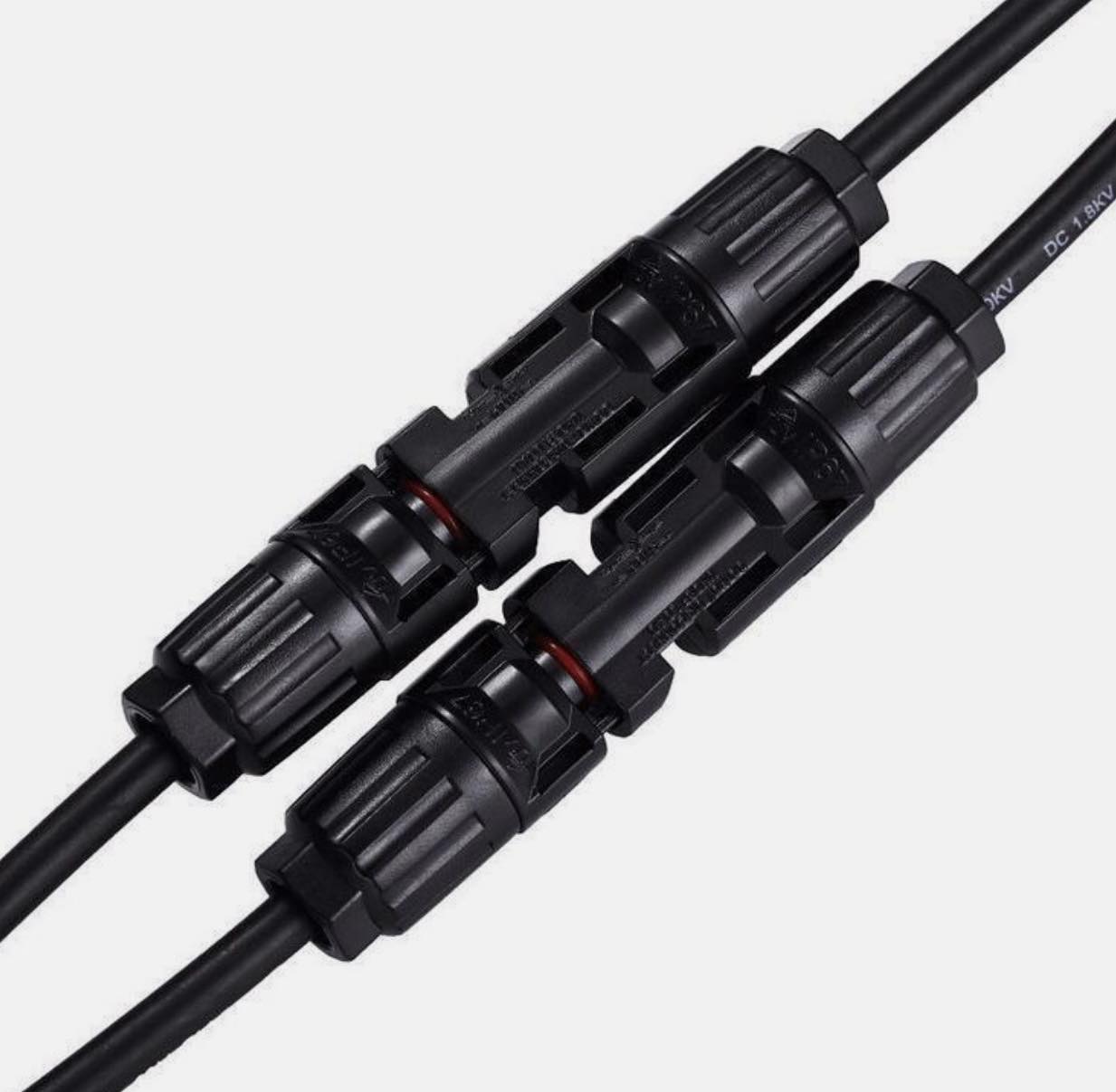

  • Fastness of male and female points with stable self-locking system which is easy to lock and open.
  • Quick and simple assembly processing and simple removal of plugs without the aid of any extra instrument.



Model: YMC4-1T2

Material: Silver Plated Copper + PPO

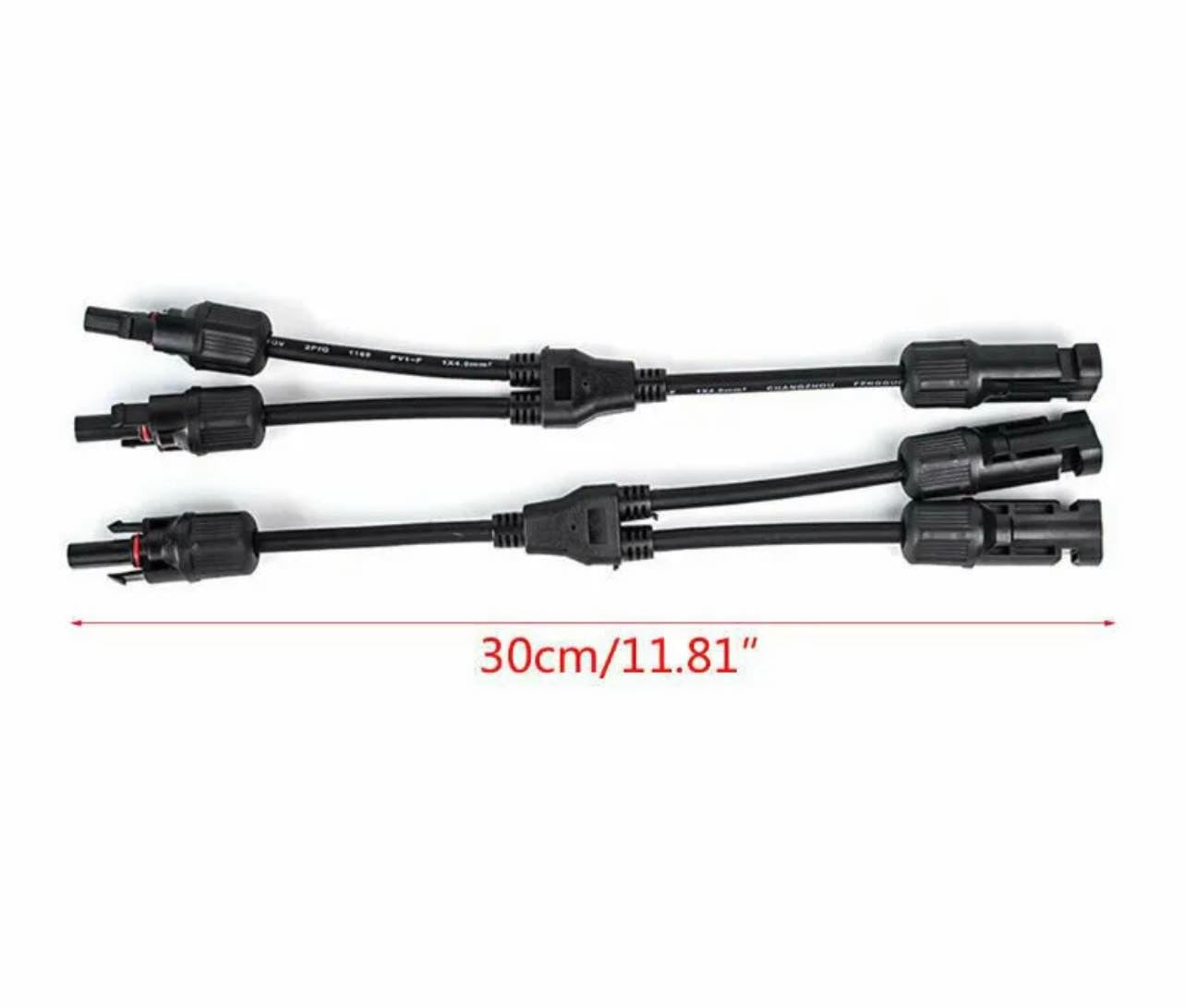

Length: 30cm

Rated Current: 30A

Rated Voltage: 1000V DC

Connector Contact Resistance: ≤0.5mΩ

Waterproof Degree: IP67

Flammability Rating: UL94-V0

Adapter Wire: 2.5~6mm² (14~10 AWG)

Connector Conductor Material: Copper + Tin

Connector Insulation Material: PPO

Operating Temperature Range: -40℃~ +110℃

Weight: 116g / Pair


Package Includes:

1 x Y Branch Splitter Cable (M/2F)

1 x Y Branch Splitter Cable (F/2M)
