LED RGB Strip Controller 2.4G RF Remote 12V-24V 4 Zone Multi Channel 4A/CH 4 Channel Wireless Control for Single RGB Strip

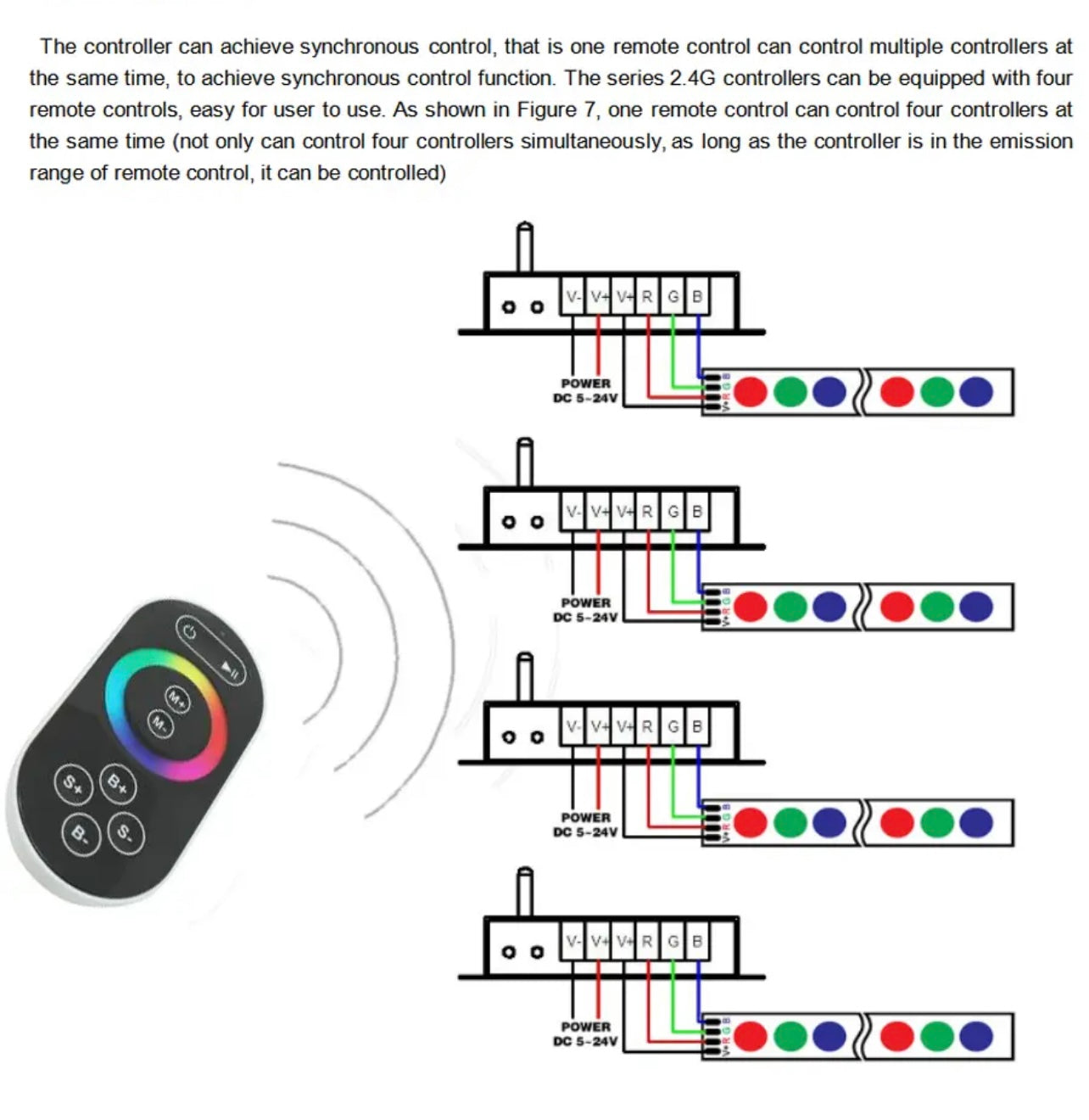

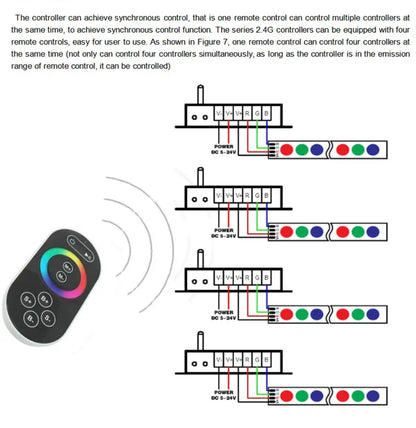

2.4G controller is newly introduced wireless high-power LED controller. It equips with touch remote control, touch remote control adopts high precision capacitance touch control technology, you can select the color you need by one button. It is convenient and easy. Each controller has a globally unique address code, in order to prevent confusion caused by controlling repeated address code. Each controller can be equipped with four remote controls, can achieve multiple controllers synchronization control. It is used for controlling a variety of lamp whose source of light is LED. For instance, point source of light, flexible light strip, wall washer lamp, glass wall light etc. It has many advantages such as convenient to connect, easy to use and others. According to the actual need of customers, it can carry out jumpy changing, gradual changing strobe-flash and other effects of change.
Specification:

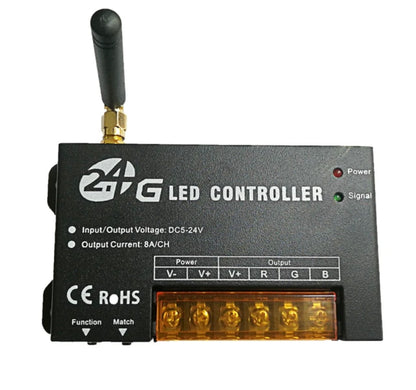

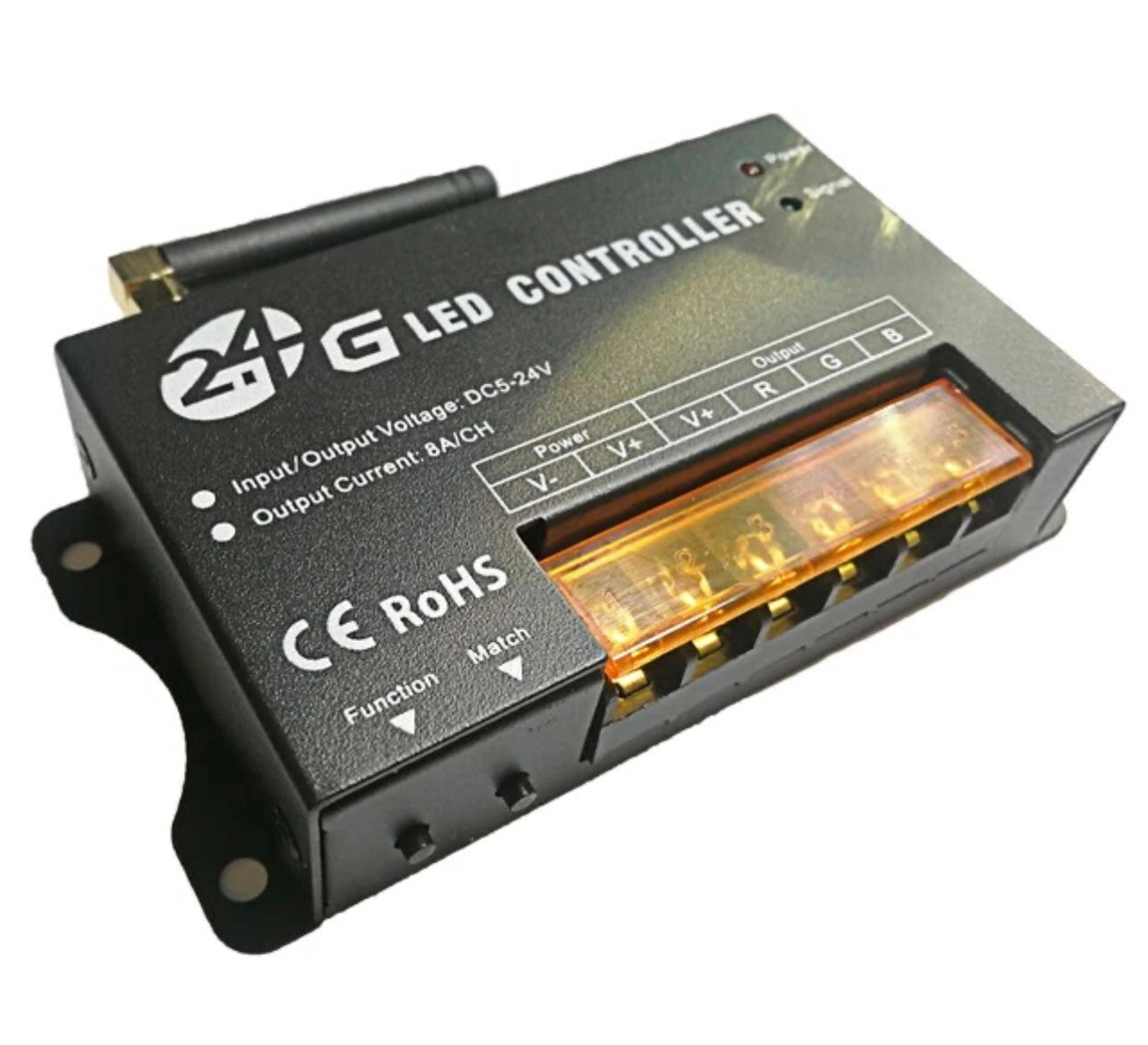

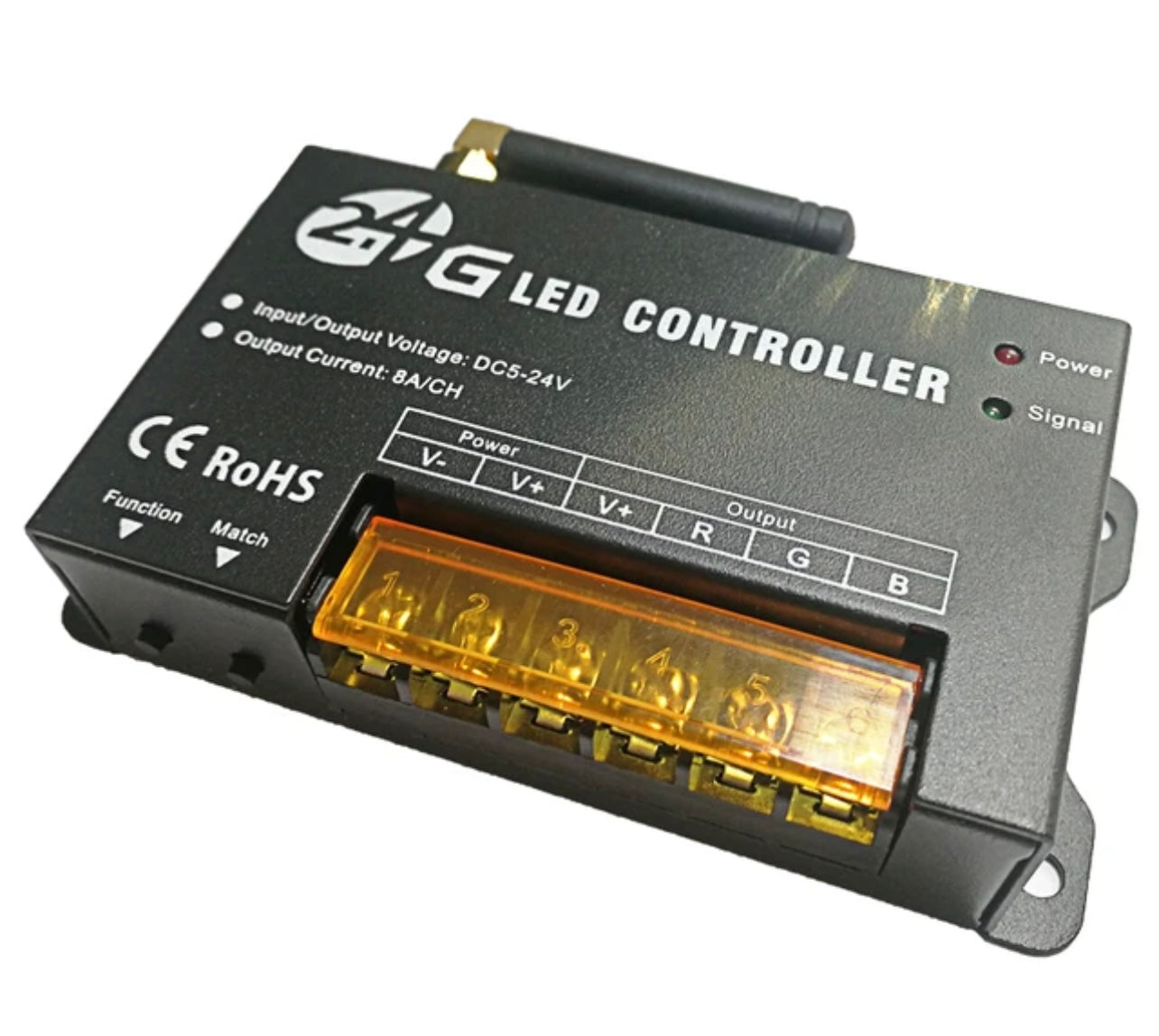

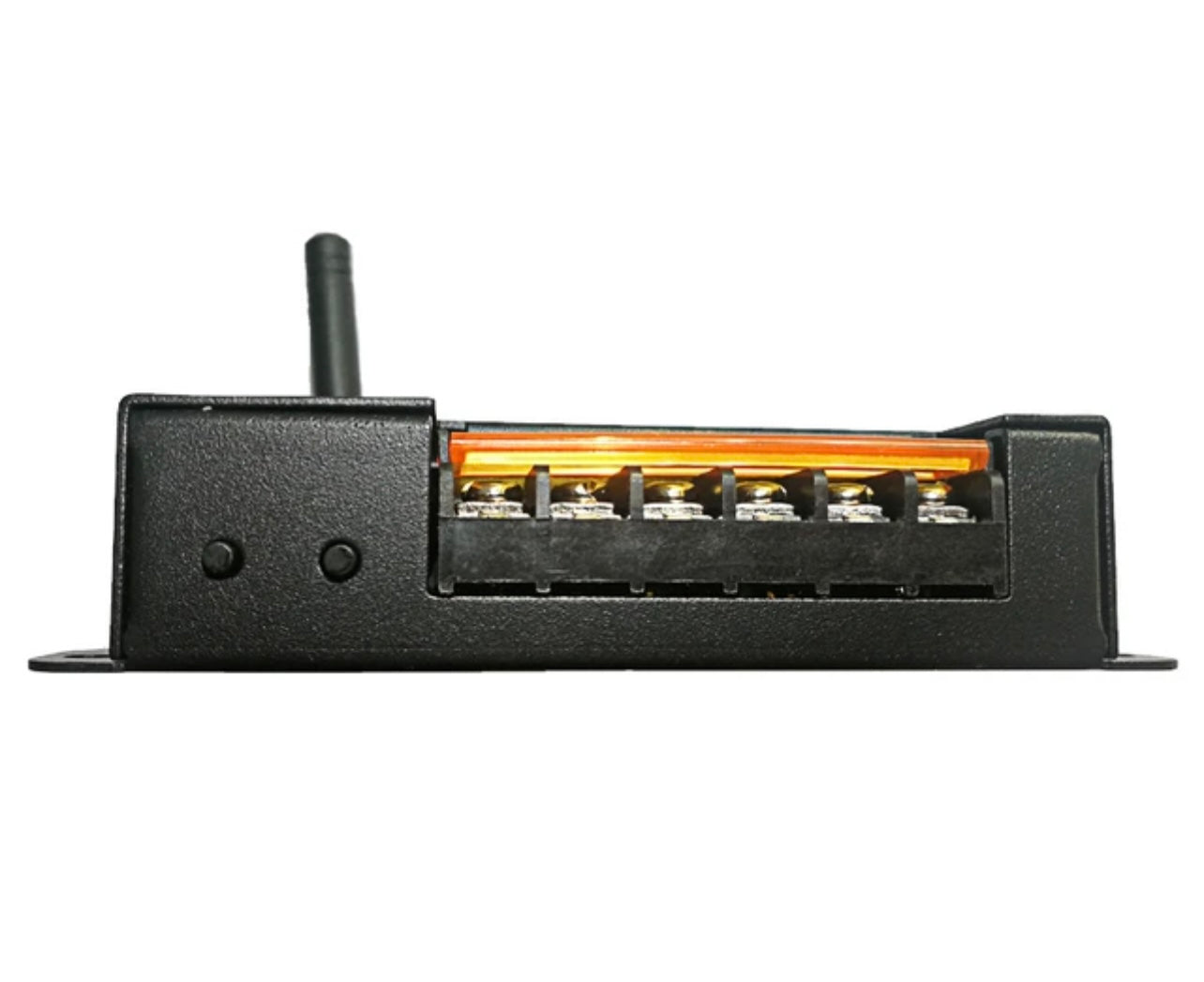

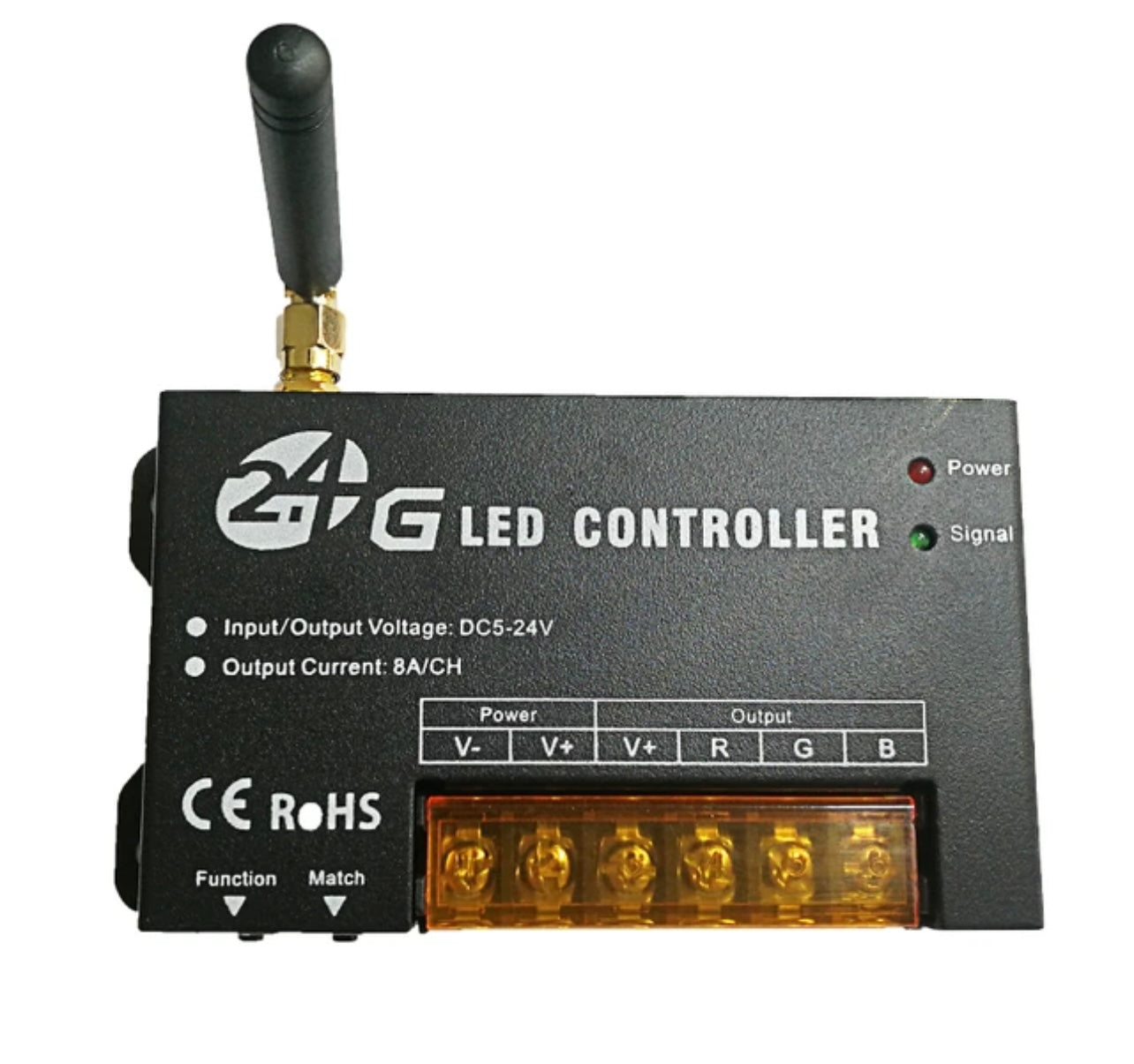

CONTROLLER
Supply Voltage: DC5V-24V
Output: 3 channels
Static Power Consumption: < 1W
Output Current: <8A (each channel)
Output Power: 12V:<288W, 24V:<576W
Connection Mode: common anode external

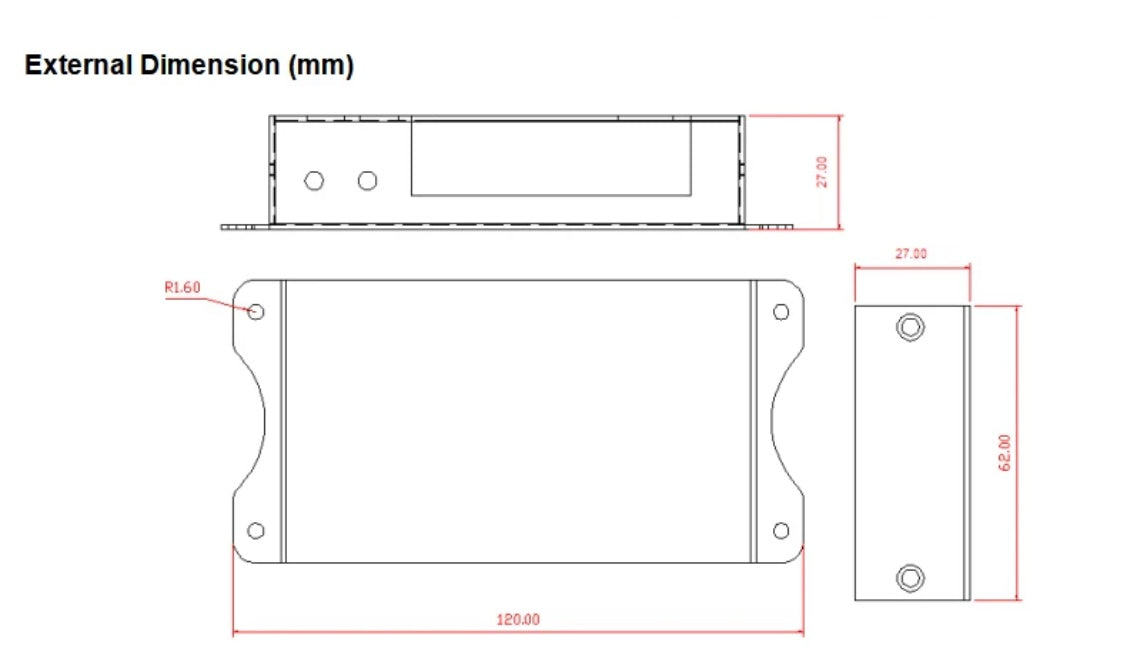

Dimension: L120 x W62 x H24mm
Weight: 226g

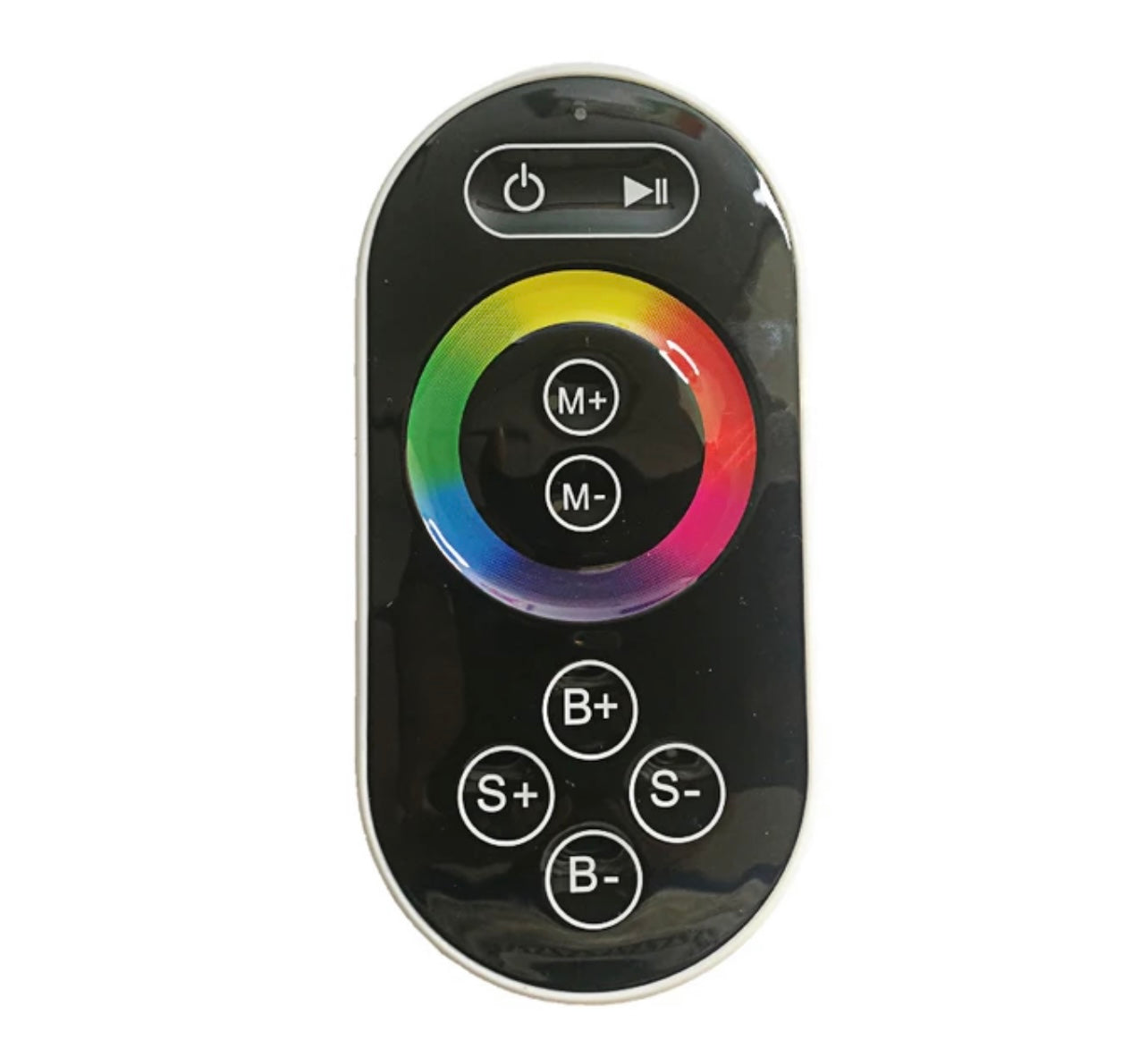

REMOTE CONTROL
Power Supply: AAA * 3 (Not Included)
Supply Voltage: 1.5V * 3
Transmission Frequency: 2.4Ghz
Standby Power Consumption: 0.015mW
Standby Current: 60uA
Working Current: 200uA
Emission Current: 10mA
Remote Distance: about 30m
Standby Time: 6 months
Weight: 94g
Package Includes:

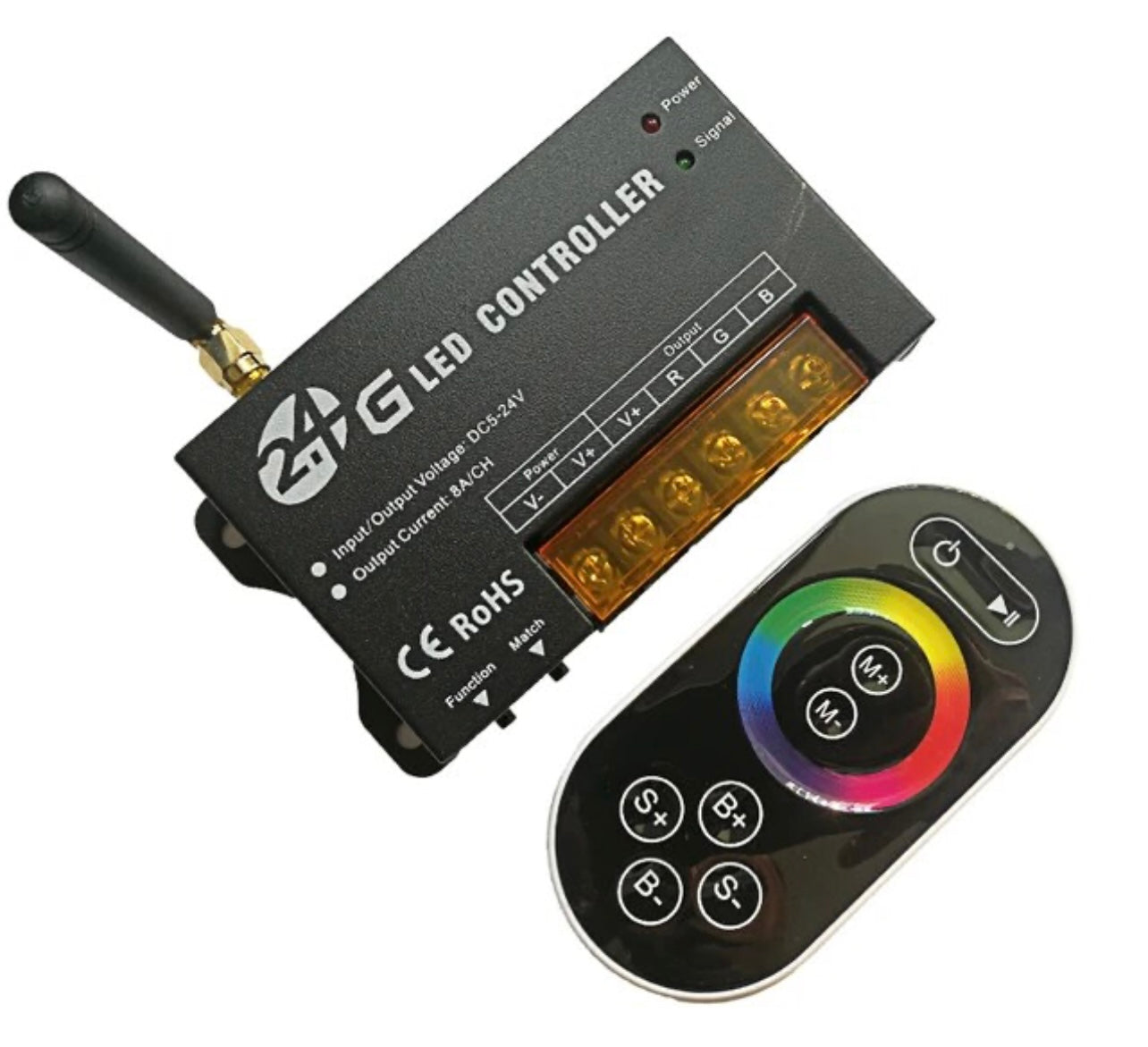

1 x 2.4G LED Controller
1 x Touch Remote Control
1 x User Manual
