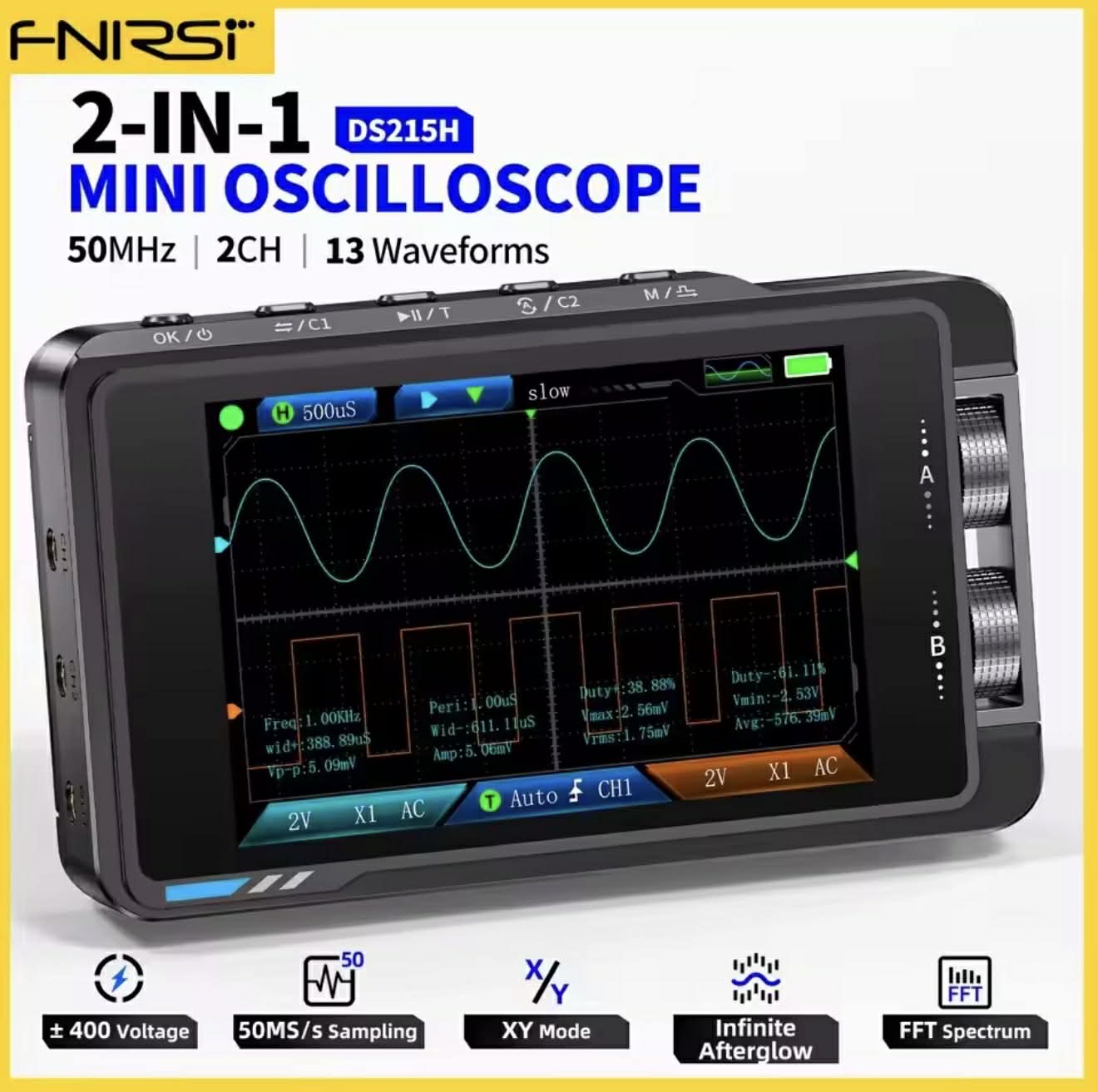

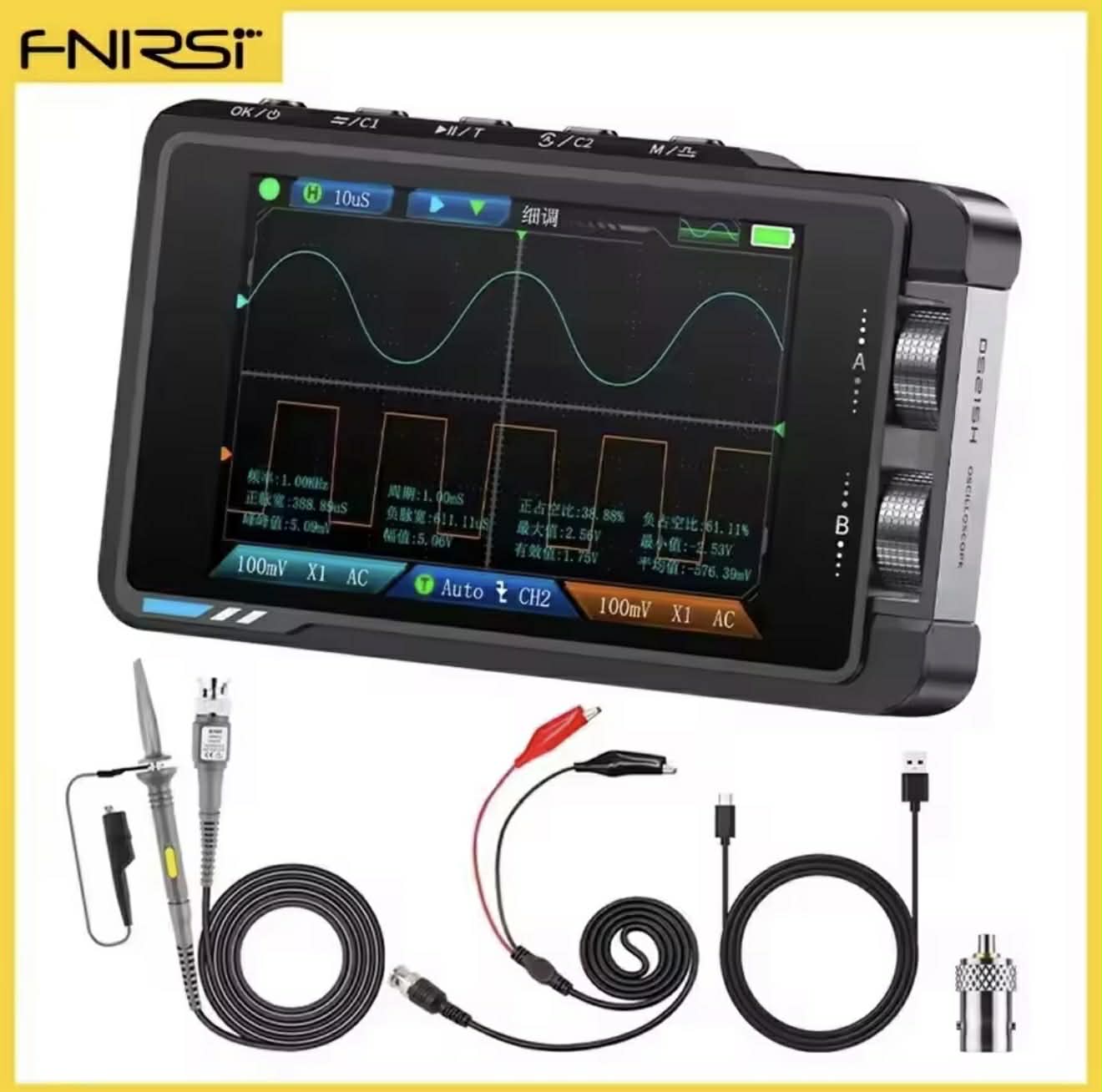

FNIRSI DS215H Handheld 2IN1 Dual Channel Oscilloscope

FNIRSI DS215H Handheld 2IN1 Dual Channel Small HD Screen Digital Oscilloscope+Signal Generator

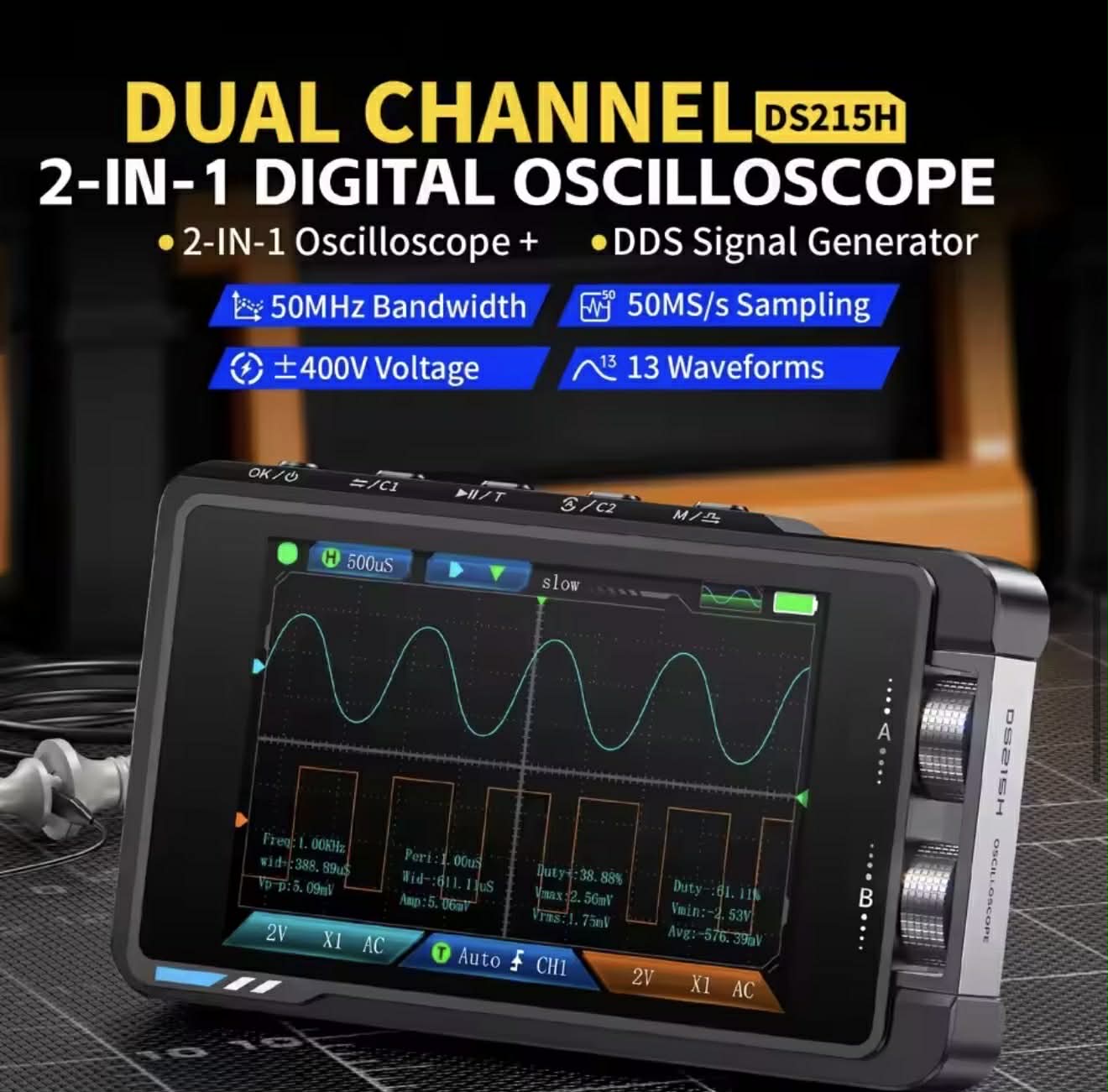

• High-precision measurement: The FNIRSI-DS215H offers high precision with a sampling rate of up to 250MS/s and a 50MHz analogue bandwidth, ensuring accurate measurements for various applications.
• Wide voltage protection: Supports peak voltage measurements up to ‡400V, offering reliable and safe performance in high-voltage scenarios.

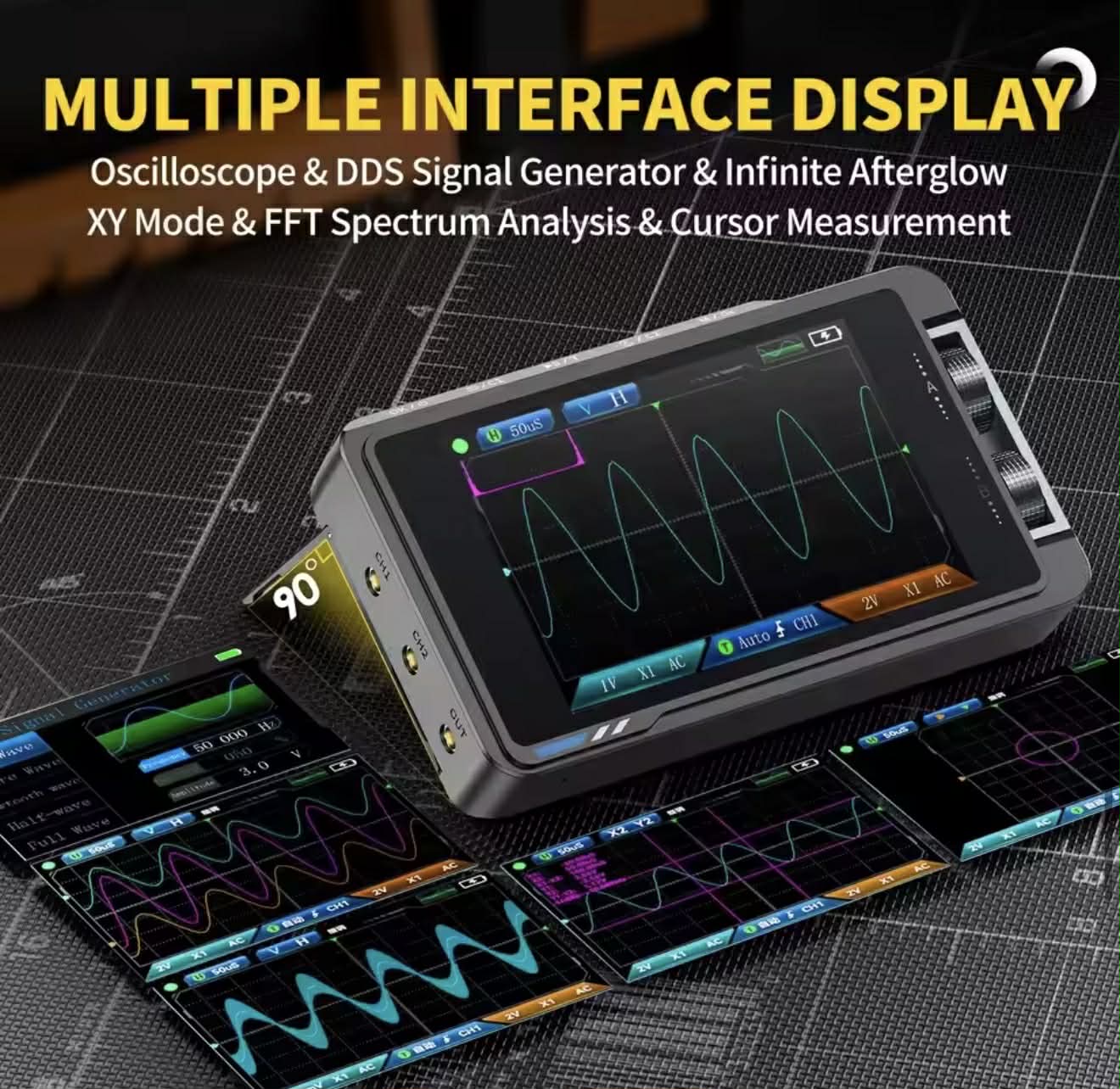

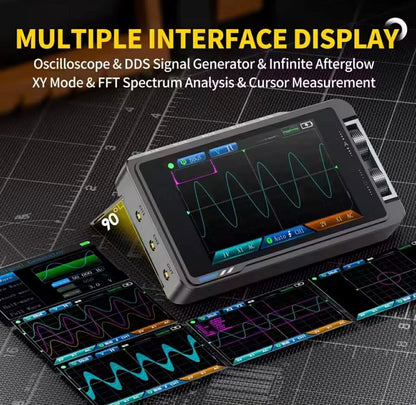

• Waveform storage: The device supports screenshot saving and viewing, making data analysis more convenient and efficient.

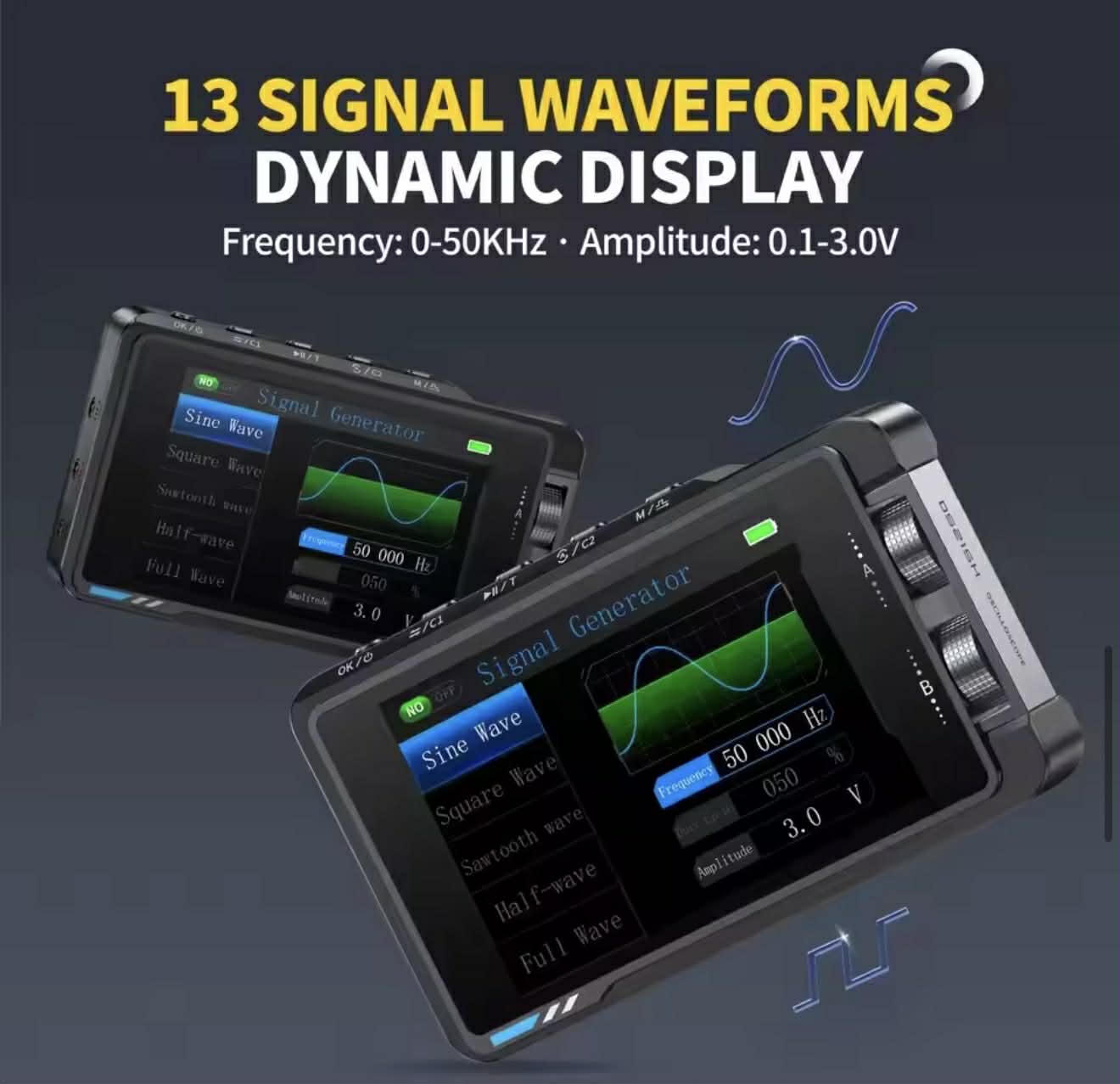

• Signal generator functionality: It features 13 waveform outputs with a frequency range of 0-50 KHz, adjustable by a 1Hz step. The output parameters, including frequency, amplitude, and duty cycle, are fully adjustable to meet various needs.
• Portable design: The device is equipped with a 3.5-inch display (480×320 resolution) for clear and intuitive visuals. Its compact and lightweight design makes it ideal for mobile use.
• Long battery life: Powered by a 1500m Ah rechargeable battery, it supports up to 4 hours of continuous operation, ensuring long-lasting performance for on-the-go use.
• Ideal for professionals: The FNIRSI-DS215H is designed to provide powerful and flexible features, offering users a portable and efficient tool for maintenance, R&D, and testing tasks.

Specification:

Model: DS215H

Display: 3.5-inch IPS high-definition color screen

Channel: Dual Channel

Bandwidth: 50 MHz

Backlight: Brightness Adjustable

Power supply: TYPE-C (5V/1A)

Battery: 1500mAh

Real-time sampling rate: 250 MSa/s

Storage space: 14M

Time base range: 20ns/div - 20s/div

Vertical sensitivity: 10mV/div - 10V/div

Waveform display mode: Scroll

Vertical resolution: 8 bits

Input impedance: 1MQ

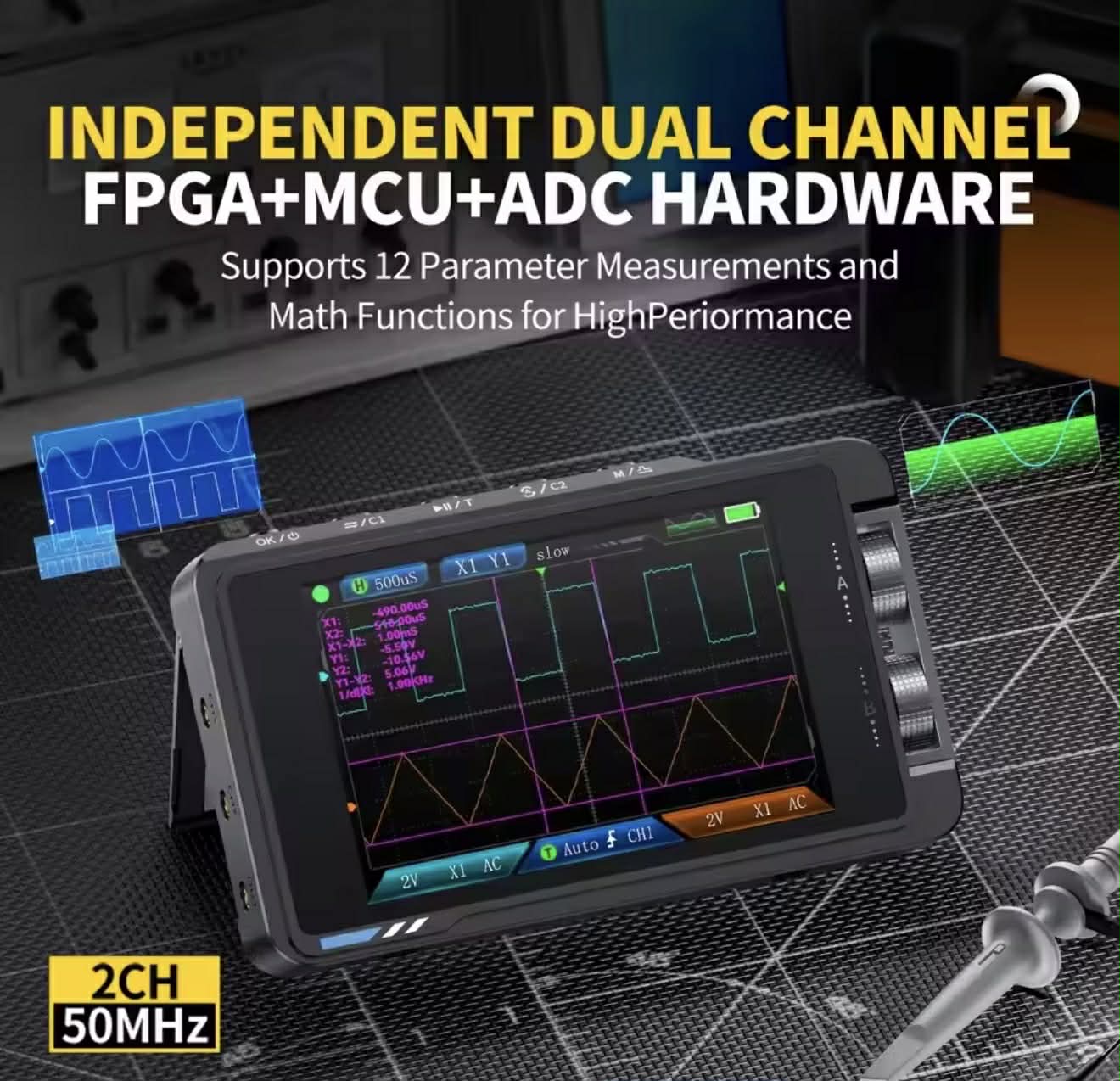

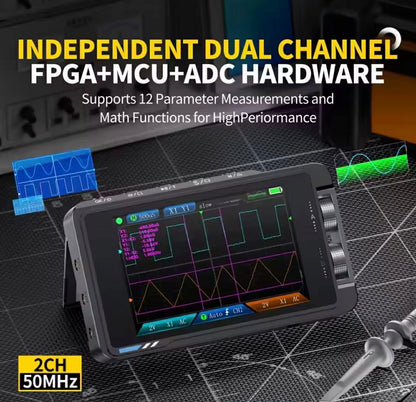

Measurement data: Cycle, Freq, Vpp, Max, Min, Avg, RMS, Amp, Dduty cycle, Pulse width

Probe attenuation factor: 1x/10x

Input coupling: AC / DC

Trigger type: Rising edge / Falling edge

Peak voltage: +400V

Trigger level range: 8 grids (positive and negative)

Trigger mode: Auto / Normal / Single

Languages：中文，English, pycckni， 日本語，Espanol, Portugues, Deutsch, 한국어

Product size: 66x110x19.5mm

Bare weight: 138g

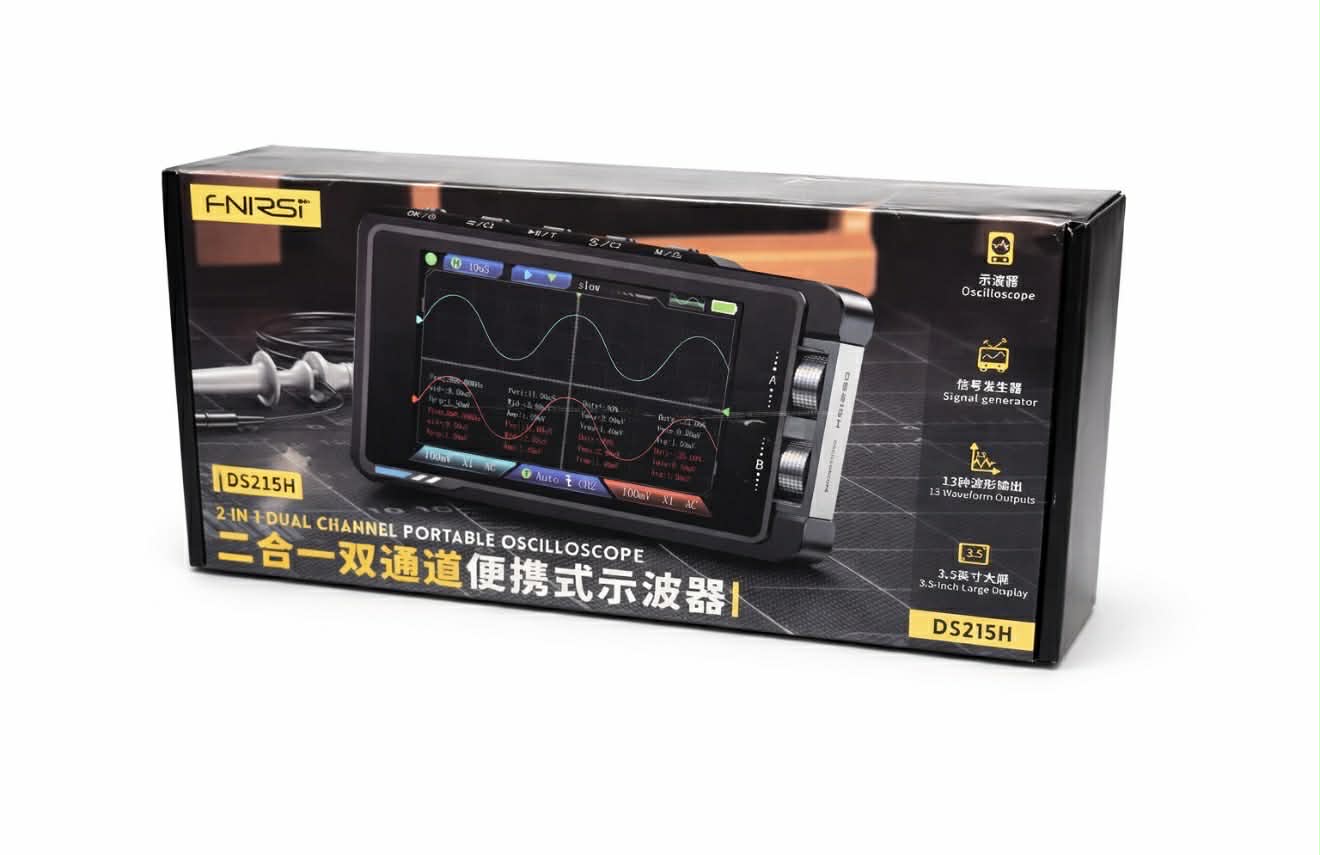

Package Includes:

1 x Host device

1 x P6100 high vltage probe

1 x Adapter

1 x Alligator clip probe

1 x Charging cable

1 x User manual
