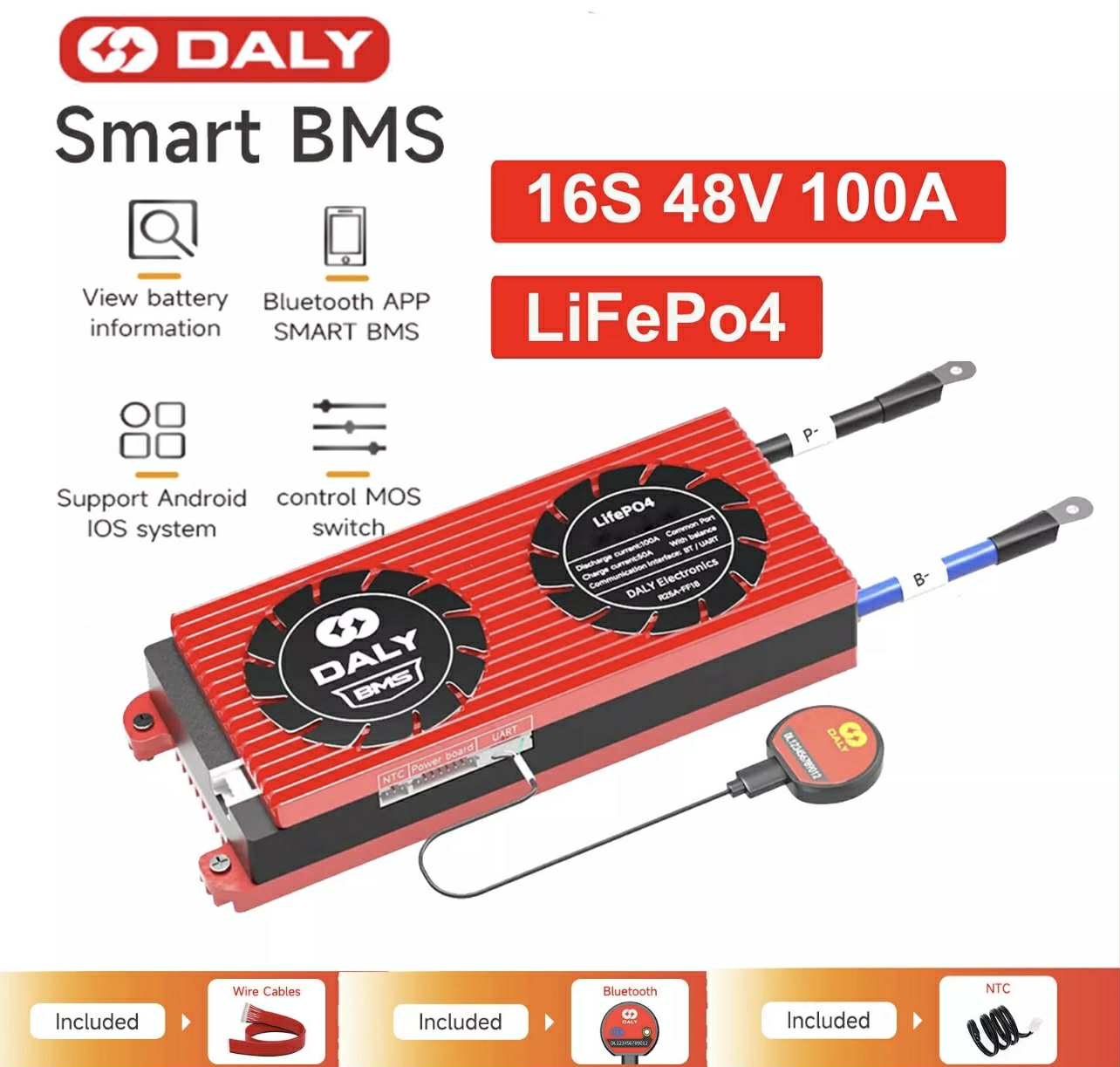

DALY Smart BMS LiFePo4 16S 48V 100A PCB Battery Management System with UART & Bluetooth Battery Monitoring Module

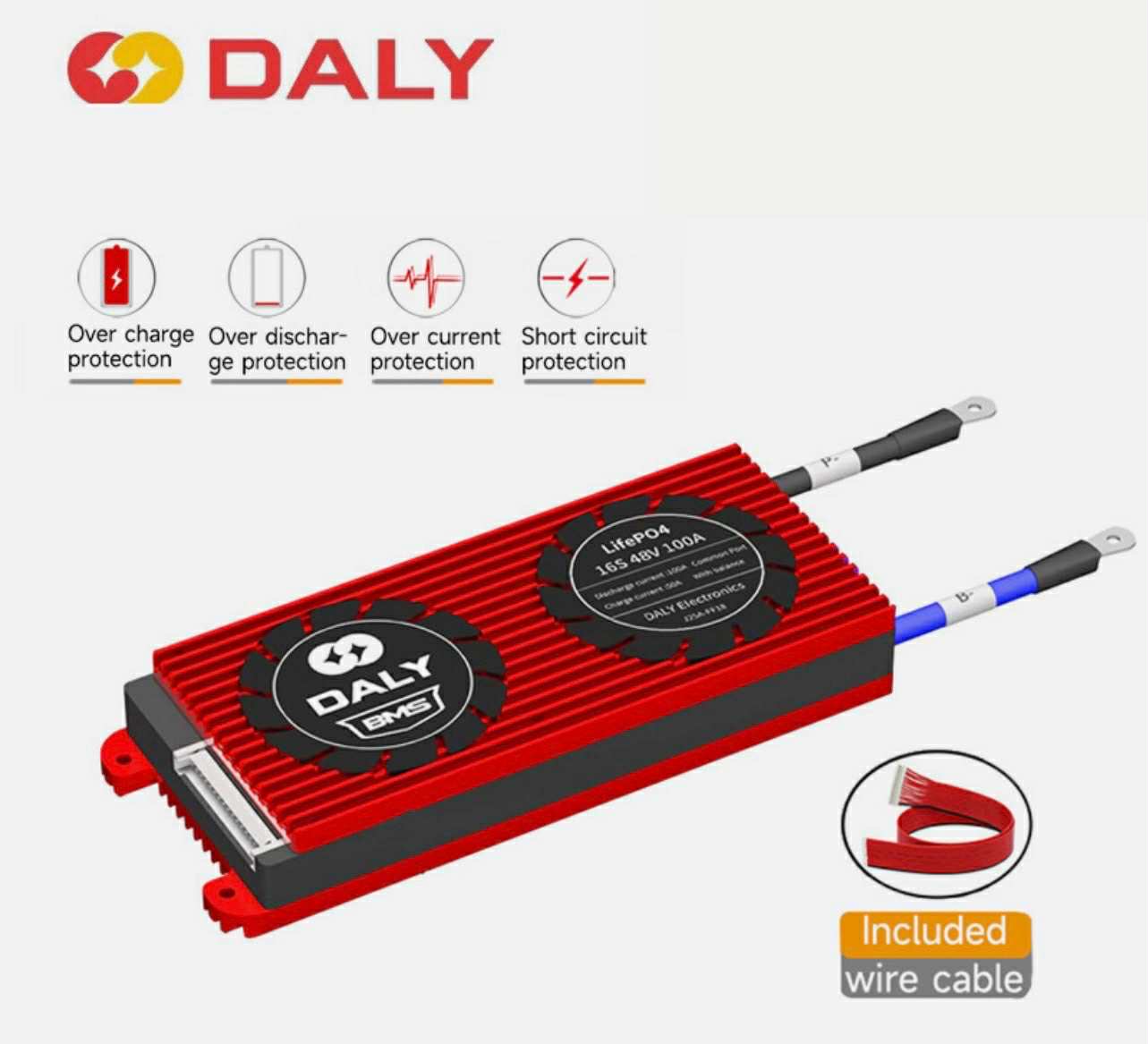

【LiFePO4 Battery BMS Protection】: The battery protection board stabilizes various charge and discharge protection functions, such as precise overcharge protection, over current protection, and short circuit protection. Suitable for lithium ion phosphate batteries with a nominal voltage of 3.2V. BMS can be used in home energy storage systems, electric bicycles, and other lithium battery-related equipment.
【BMS use】: real-time viewing of parameters---with intelligent communication function UART protocol, USB to UART data cable, USB to RS485 data cable, USB to CAN data box, can be connected to mobile phones, display screens, and computers, with accurate data, intelligent management (packaging without CAN data box).

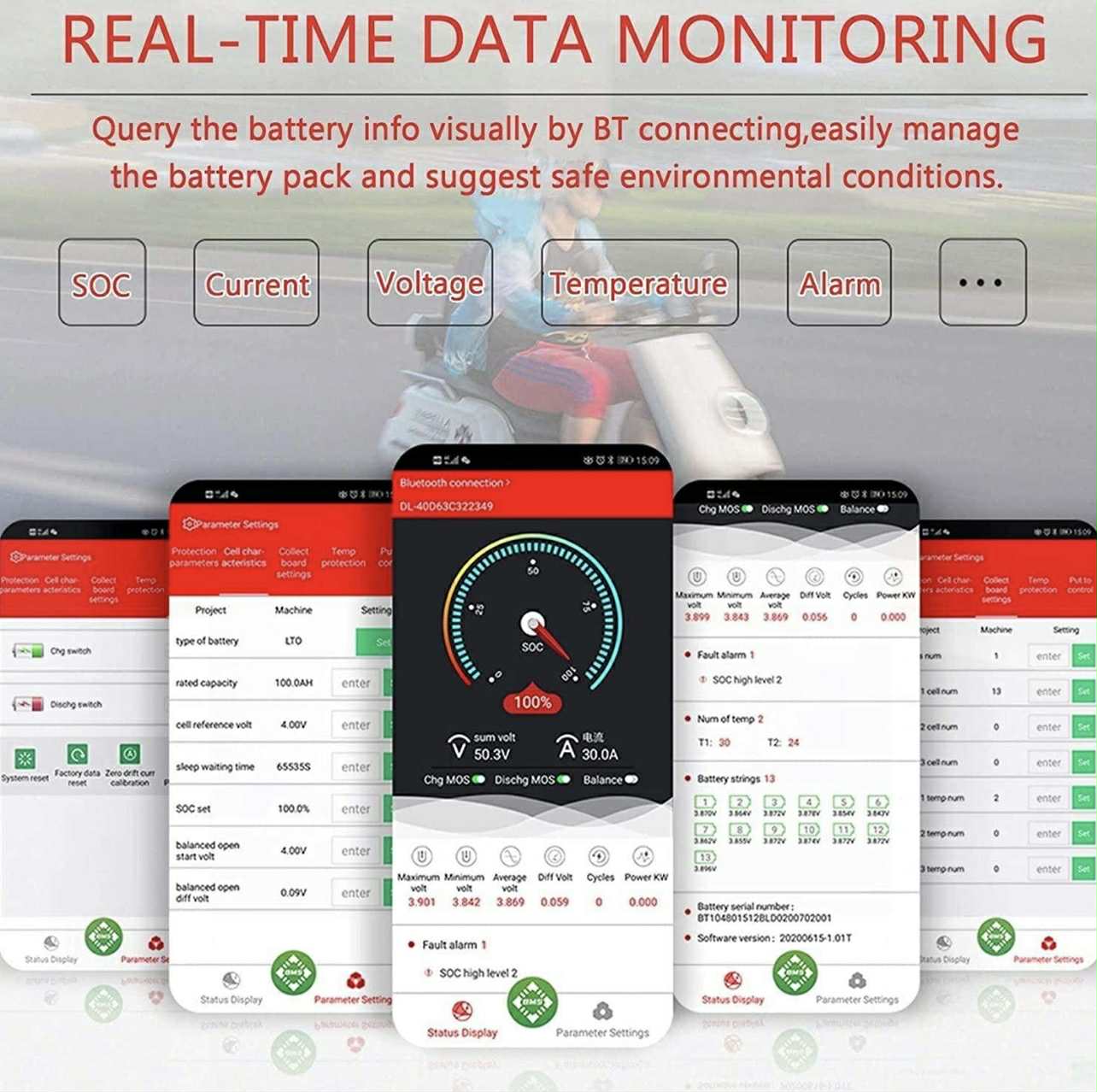

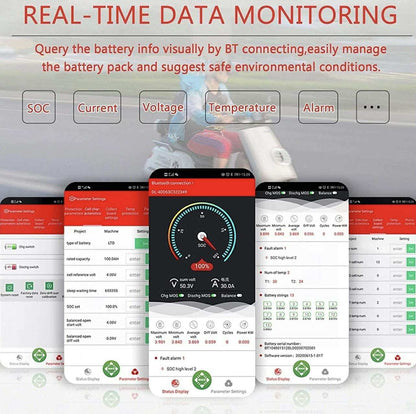

【Alarm reminder】: When the temperature, voltage, current and other factors have a negative impact on the battery, the Bluetooth smart BMS APP/PC monitoring program will have an alarm display. Programmable parameters, charge and discharge protection current, voltage, temperature can be within a certain range.

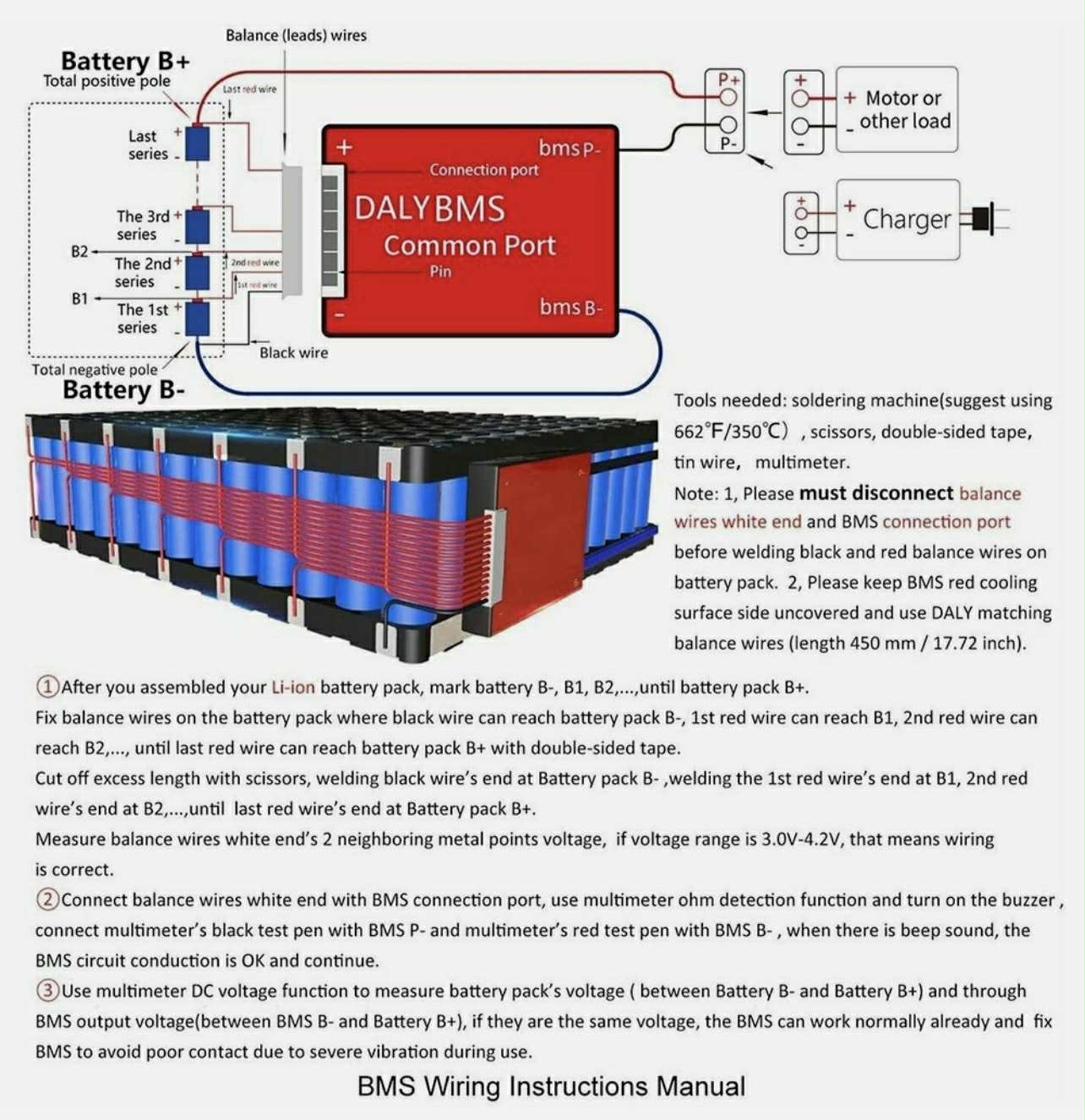

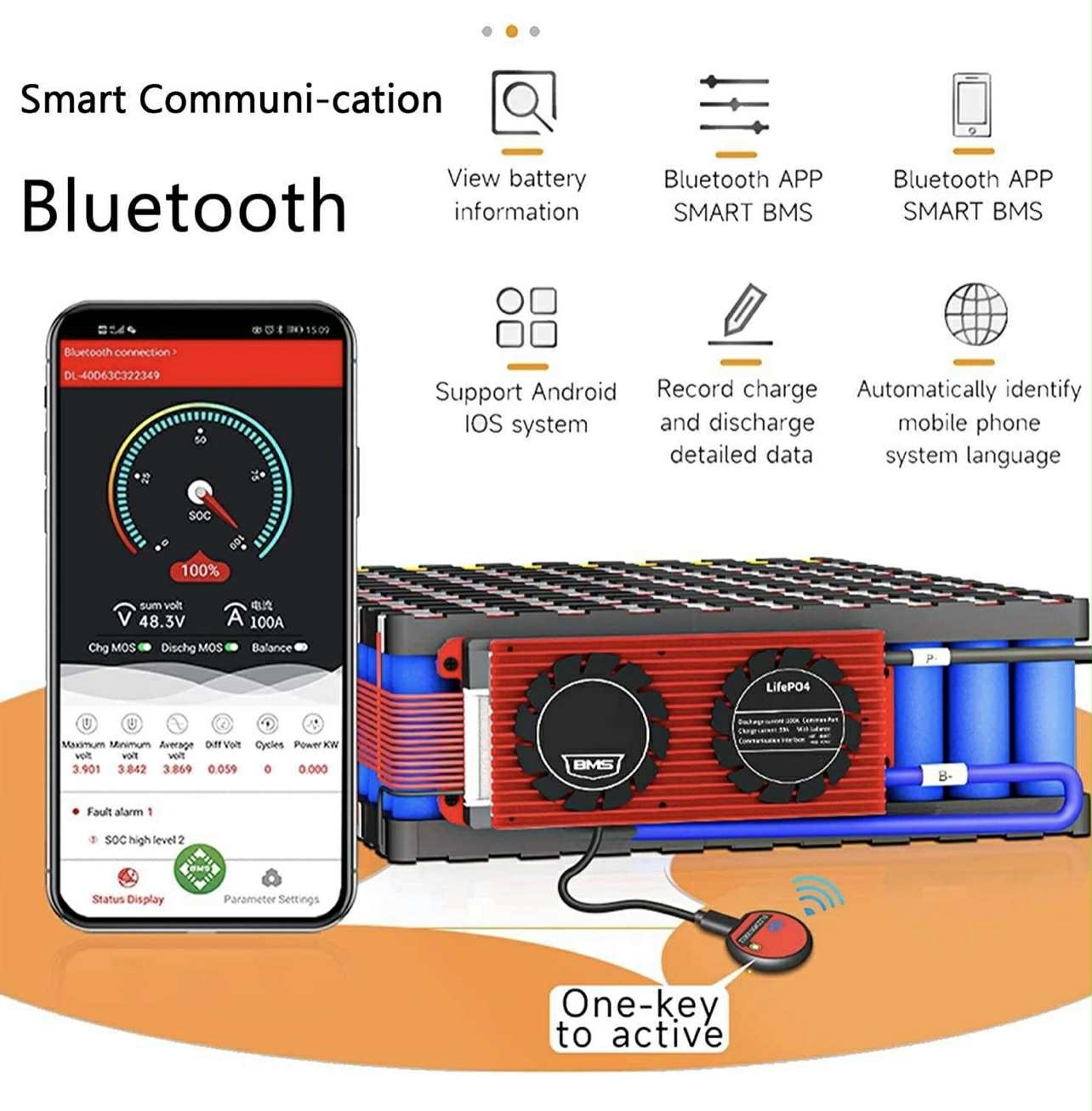

【Easy installation】:Before connecting the BMS lithium battery protection board, please be careful not to solder the cable to the protection board. Correct soldering of the cables and connection sequence of the protective plate and the battery must be confirmed. Must be activated on first use. The board can be activated via the bluetooth component (the bluetooth component contains an activation button).
Specification:
Model: LiFePo4 16S 48V 100A
Colour: Red
SKU: R25A1-*-KA09
Norminal Voltage: 3.2V
Constant discharge current: 100A
Constant charge current: 50A

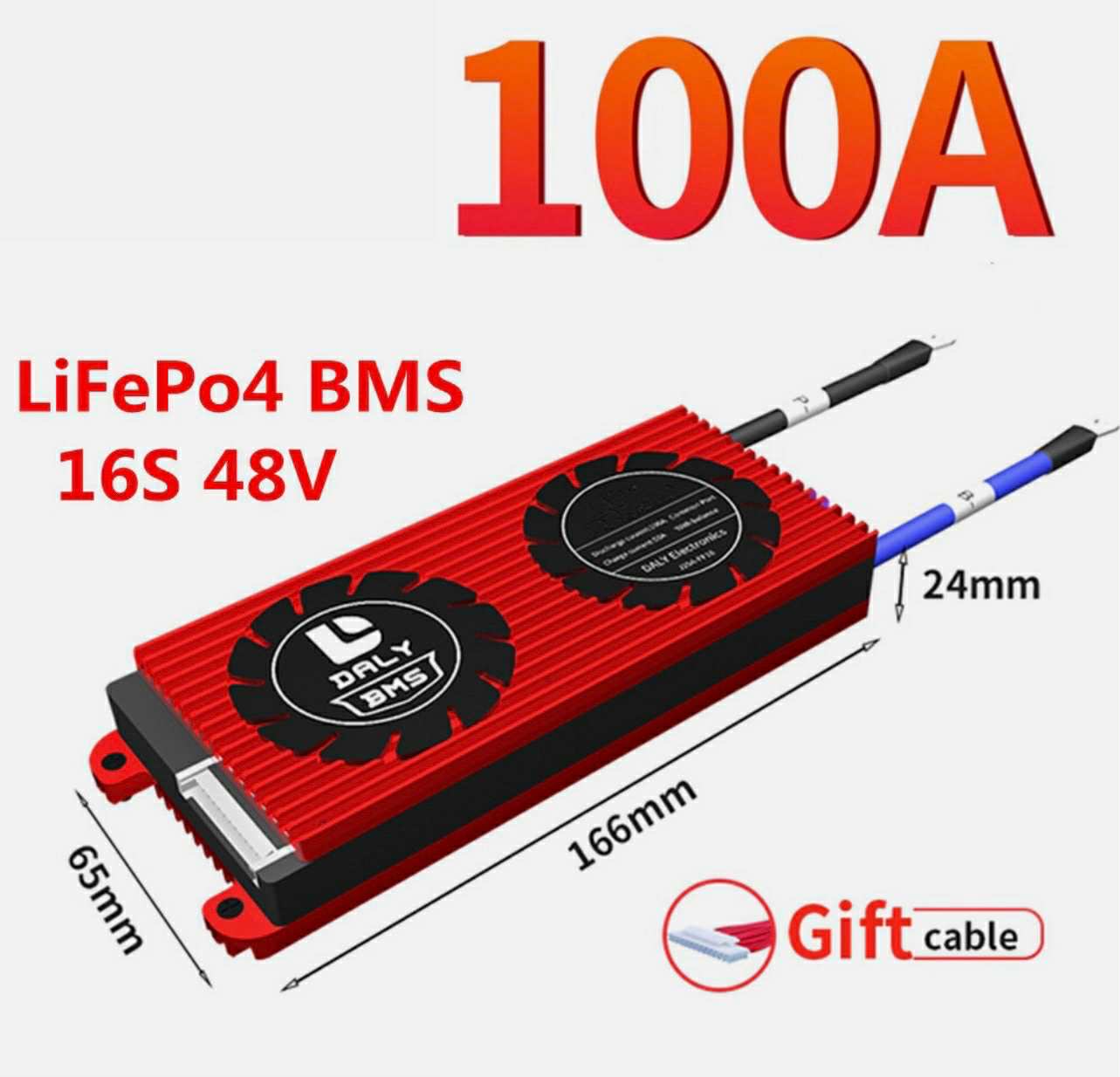

Dimensions: 166 x 65 x 24mm
Weight: 440g

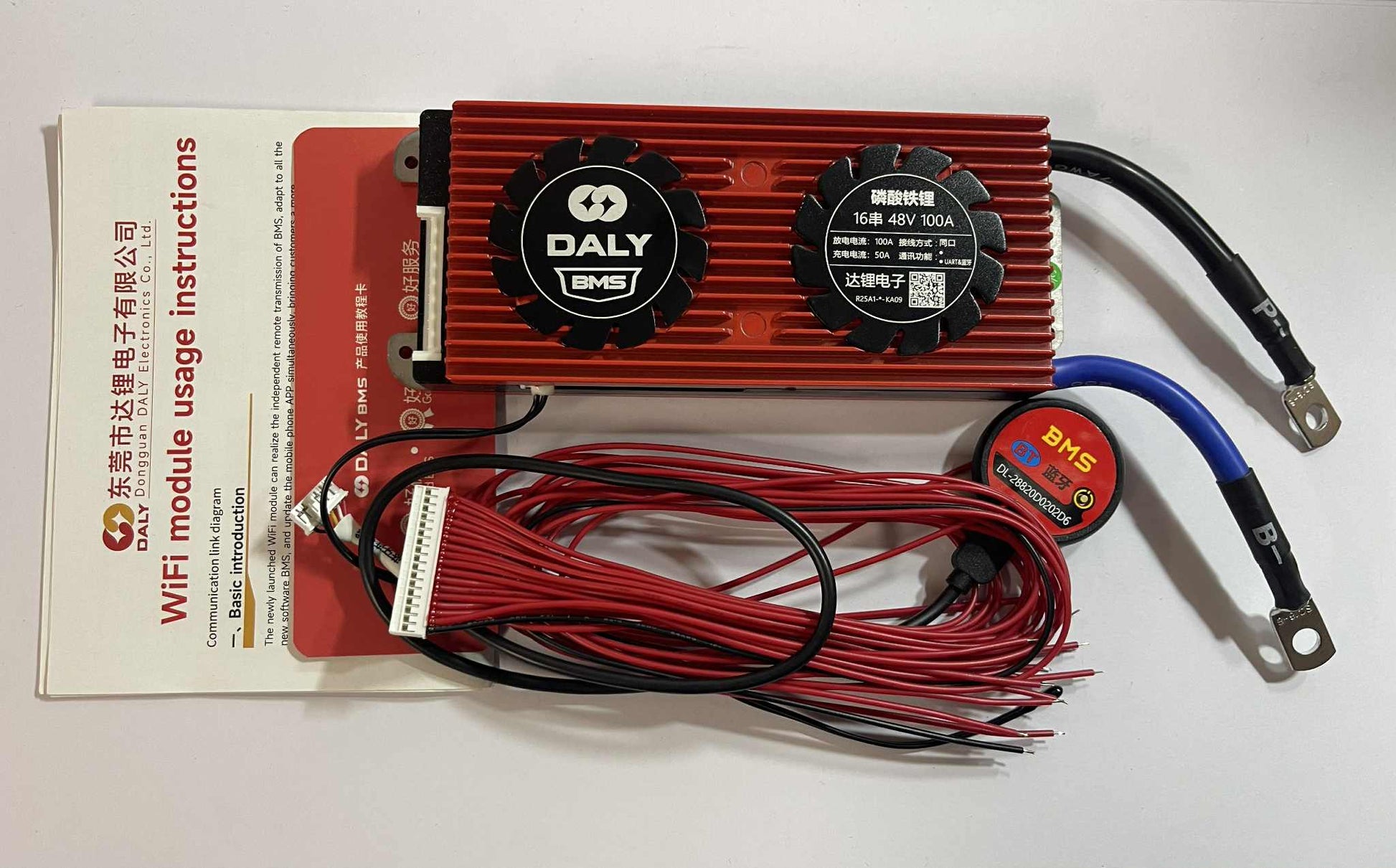

Package Includes:
1 x LiFePo4 BMS
1 x BT Module (Activation Button)
1 x Support Balance Line
1 x RS485 Line
1 x UART Line
1 x NTC Line (Temperature Sensor)
1 x Manual
