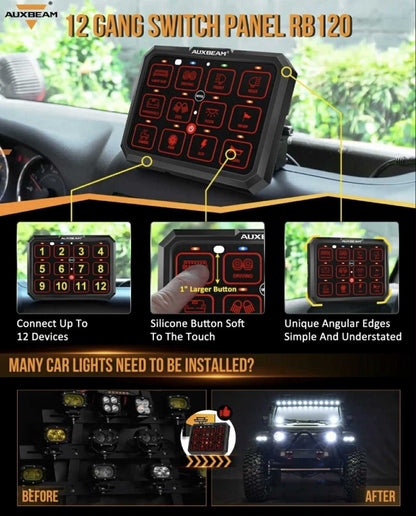

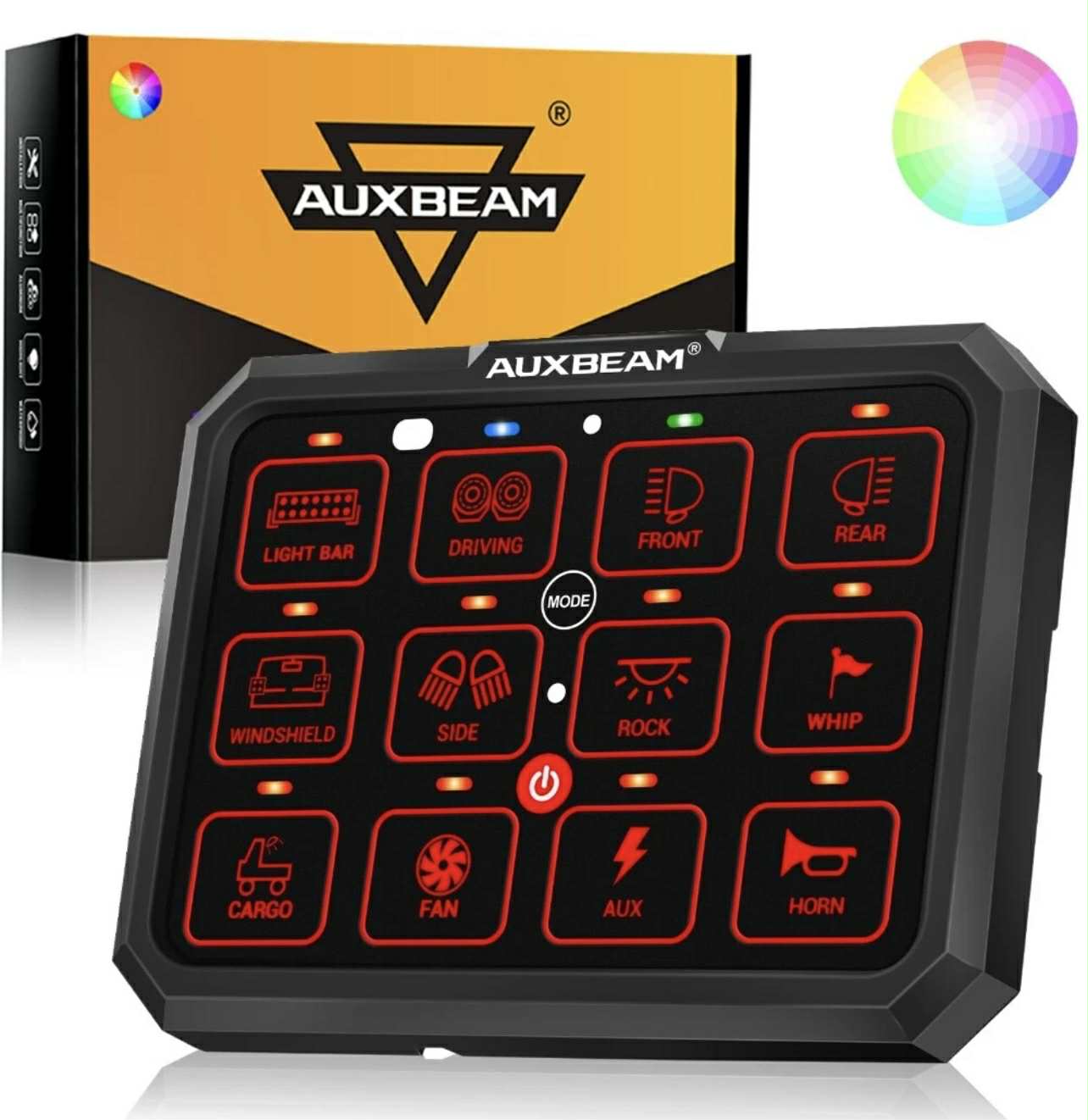

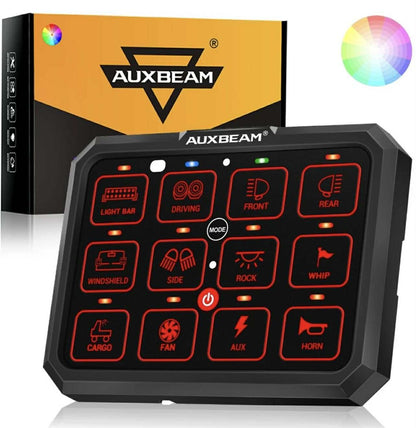

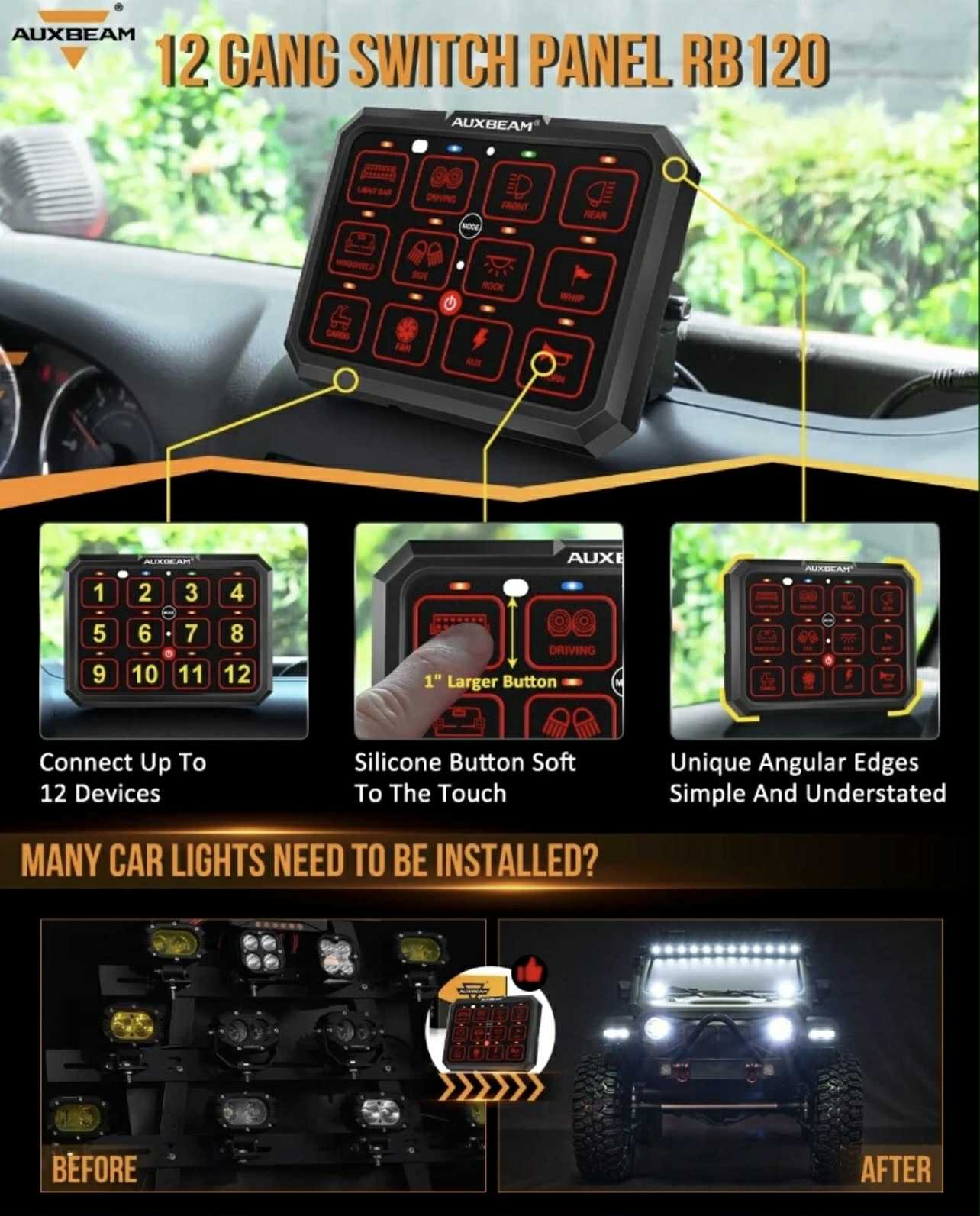

AUXBEAM 12 Gang Switch Panel W/RGB Backlight | RB120 | 12V - 24V

AUXBEAM 12 Gang Multifunction Switch Panel W/RGB Backlight | RB120 | 12V - 24V | Toggle Momentary Pulsed Dimmable | Truck Offroad UTV ATV Car Marine Waterproof

• Auto-Dimming: Auxbeam 12 gang switch panel RB120 features countless RGB backlight colour options for you to freely choose that meet the different needs of your car. The auto-dimmable backlight will brighten in bright, dim at dim surroundings—no more eye strain caused by the backlight brightness.
• 3 Modes & RGB Color: The multifunctional switch can be programmed to 3 lighting modes. TOGGLE mode provides constant lighting, MOMENTARY mode only works when a switch pod is pressed, and PULSED mode offers a strobe effect. The auxiliary switch panel offers unlimited options for RGB backlight colors to match your vehicle's ambiance.

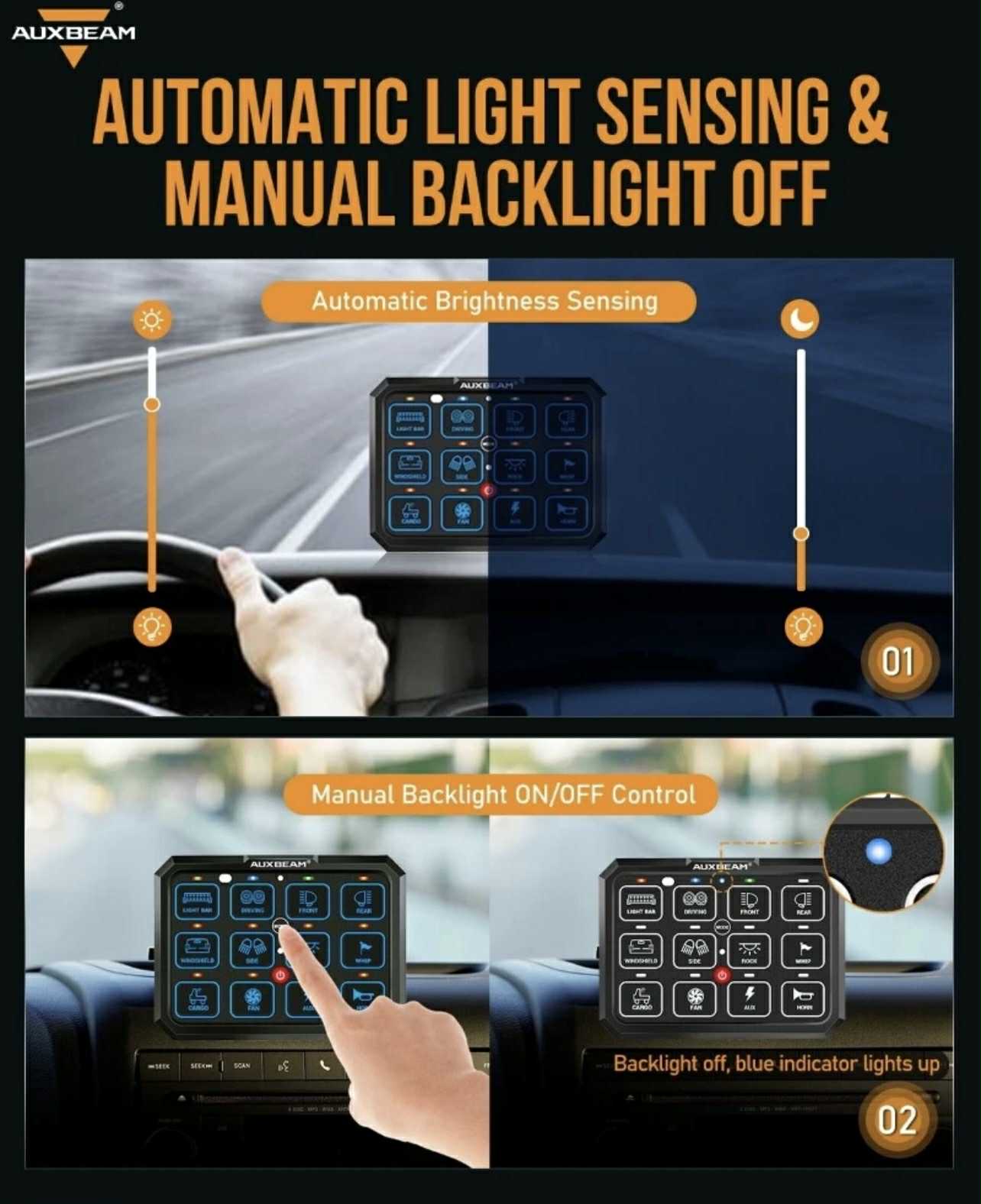

• Backlight Off & Automatic Dimmable: The RGB automotive switch panel has a mode button to easily turn the backlight on or off. If the backlight seems too harsh in dark environments, simply turn it off for a more comfortable visual experience or rely on the panel's built-in light sensor for automatic adjustment.
• Memory Function: Except for use to activate the RB120 switch panel, the "ON/OFF" button also has a memory function! When you press it, the switch panel will automatically restore the light settings from before it was turned off, making your driving experience more convenient and personalized.

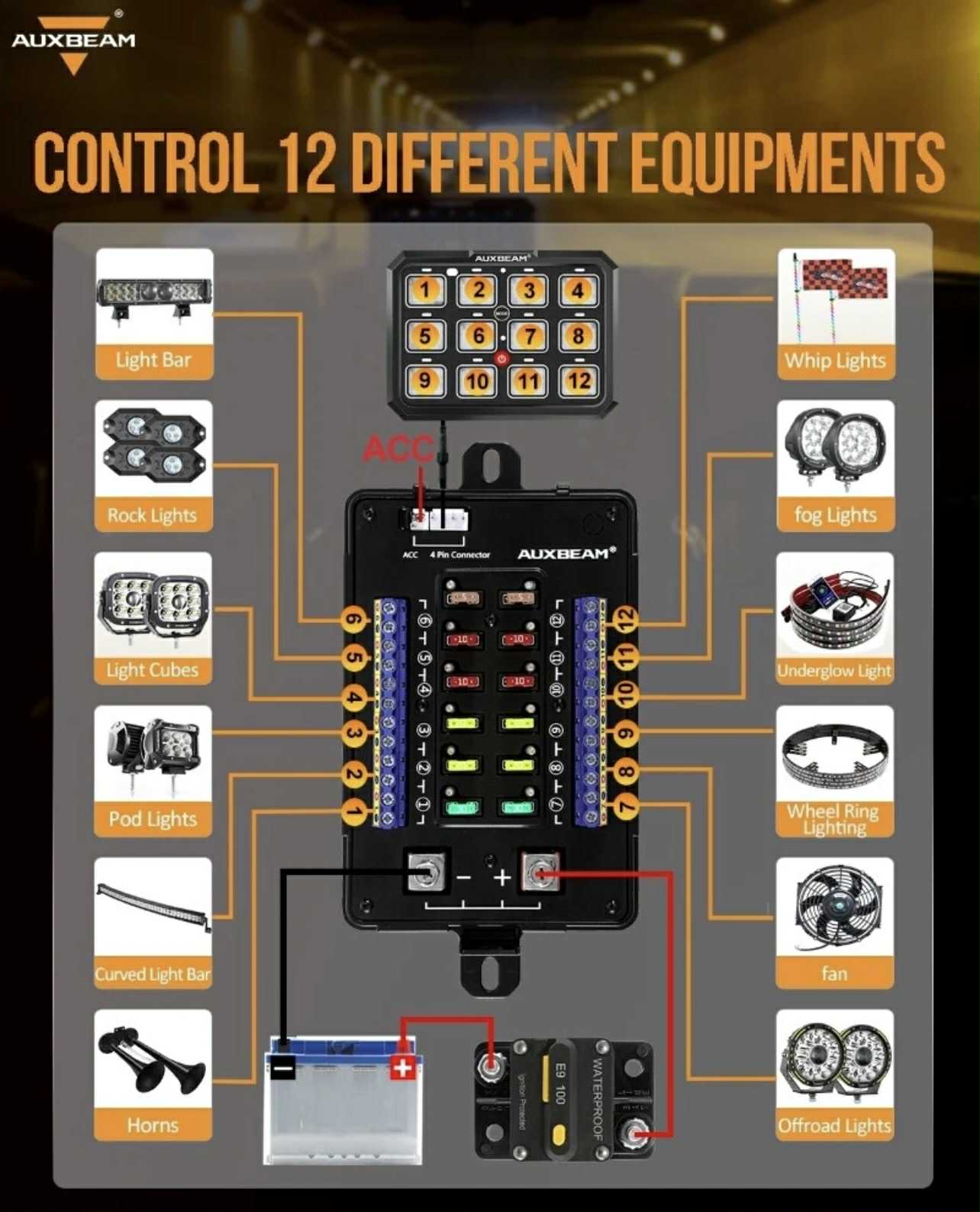

• Two-Sided Output: The current control box splits the outputs into two sides. This feature allows for more flexible wiring, reduces wire clutter in the engine bay and under the dash, improve its safety.

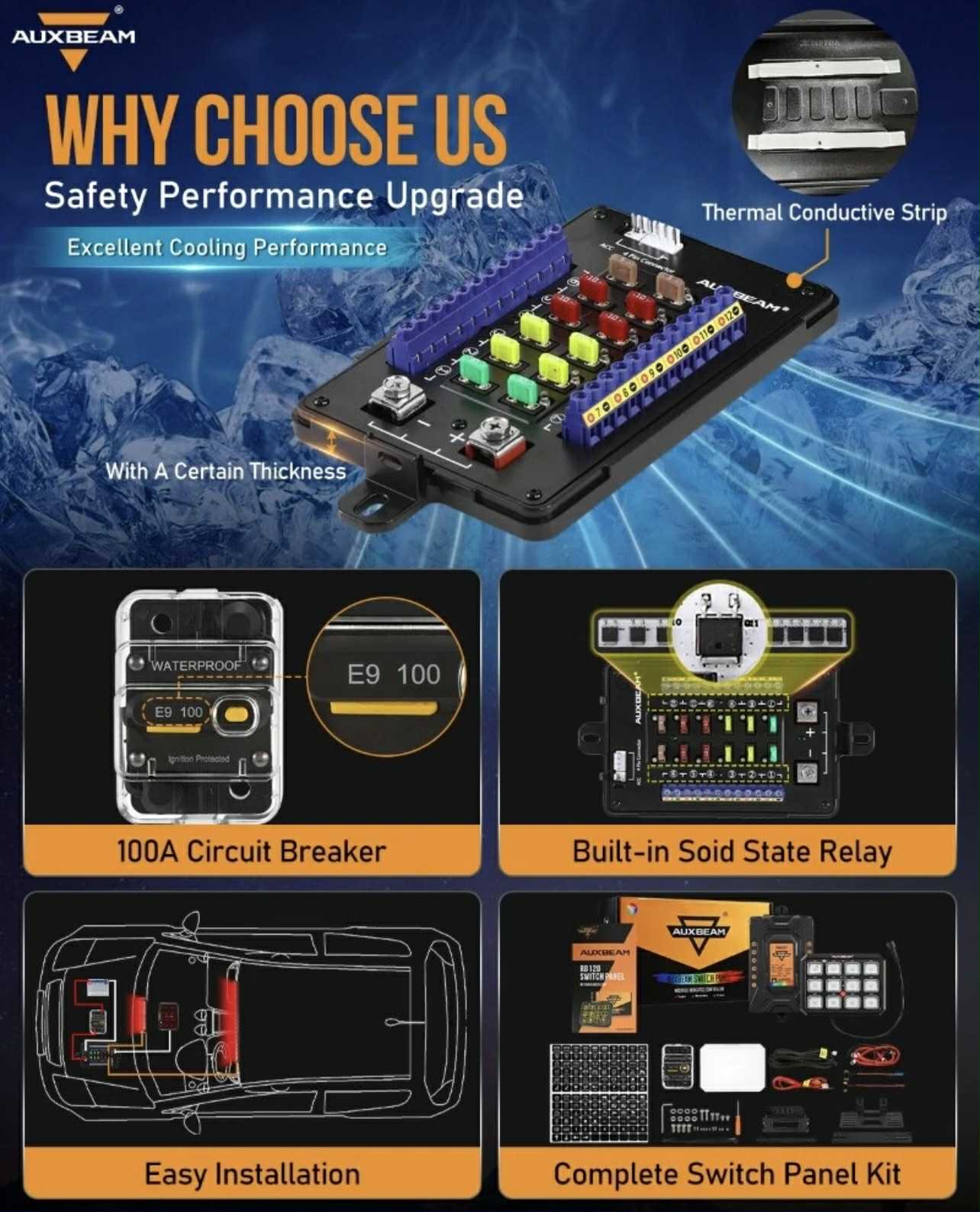

• Security: The control box of the RB120 12 gang switch panel has built-in solid state relays, and the package also includes a high-quality resettable circuit breaker, protecting against reverse polarity, overcurrent, overvoltage, and overheating. We equipped a silicone protective cover to protect the switch panel from water, snow, and sand.
• Widely Application: The 12 gang RB120 switch panel is widely compatible with all of 12V-24V vehicles, such as Truck, Boat, Car, Bus, Off-road, Powersports, Marine, ATV, UTV, SUV, Side by Side, 4x4, Heavy-duty machines, etc.

**This Auxbeam RB120 switch panel DOESN'T support Bluetooth app control!

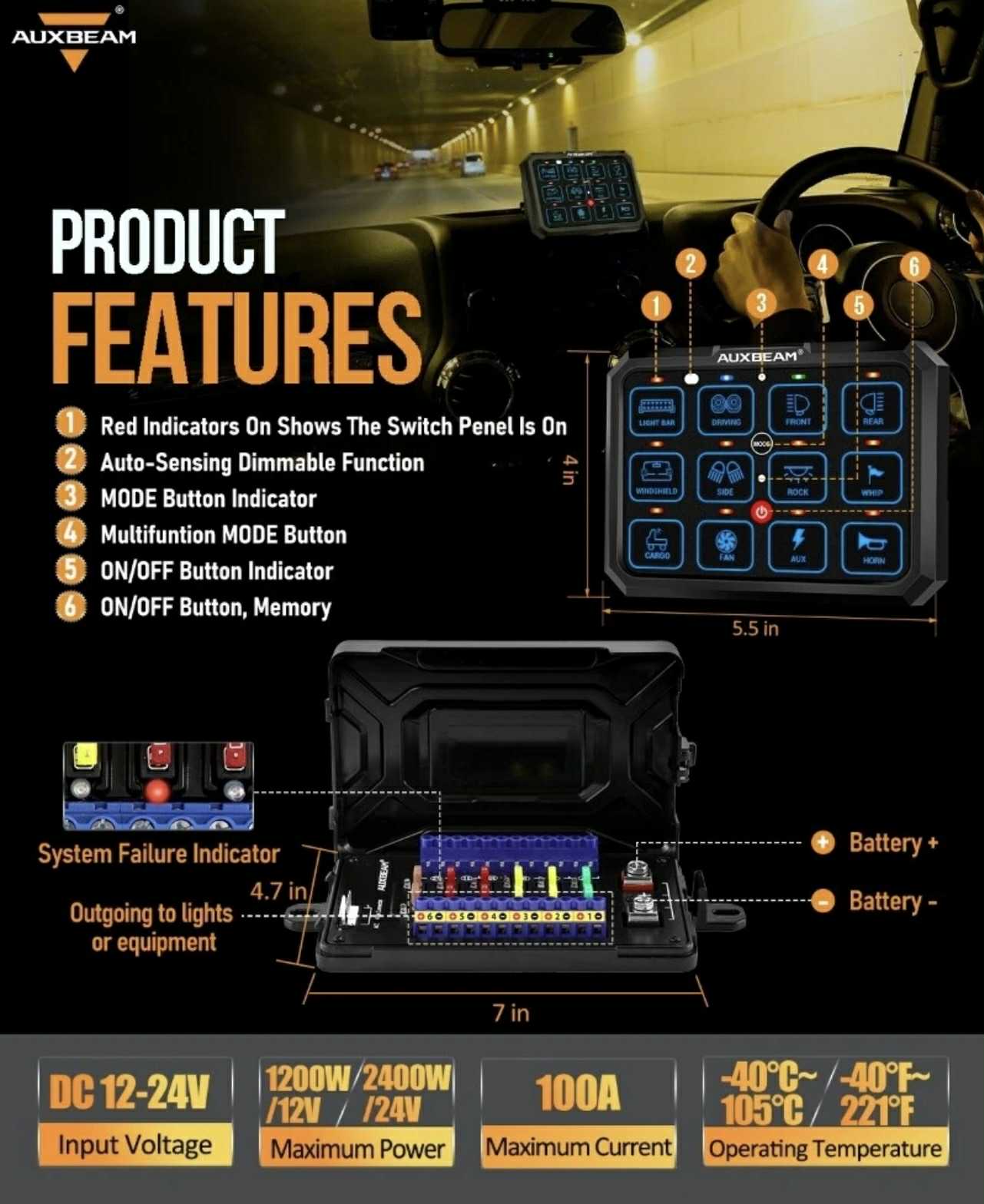

Specification:

Model: RB120

Voltage Input: DC 12 - 24V

Rated Voltage: 12V 20A / 24V 10A

Max Current: 100A

Max Power: 1200W/12V, 2400W/24V

3 Lighting Mode: Toggle/Momentary/Pulsed

Dimmable Function: Auto-Sensing

Waterproof Rating: IP65

Temperature Rating: -40°C ~ 105°C

Switch Panel Dimensions: 140 x 105 x 17mm

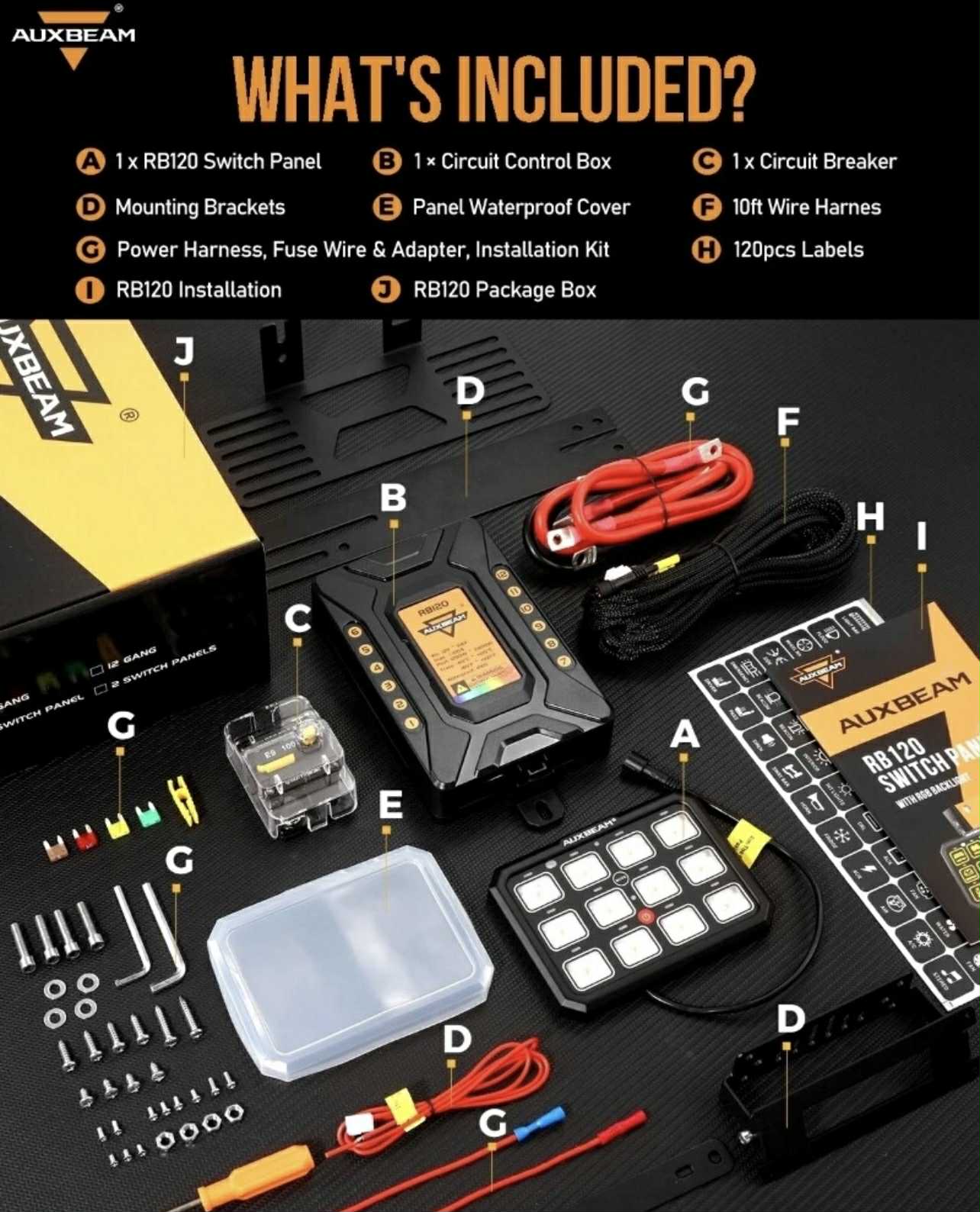

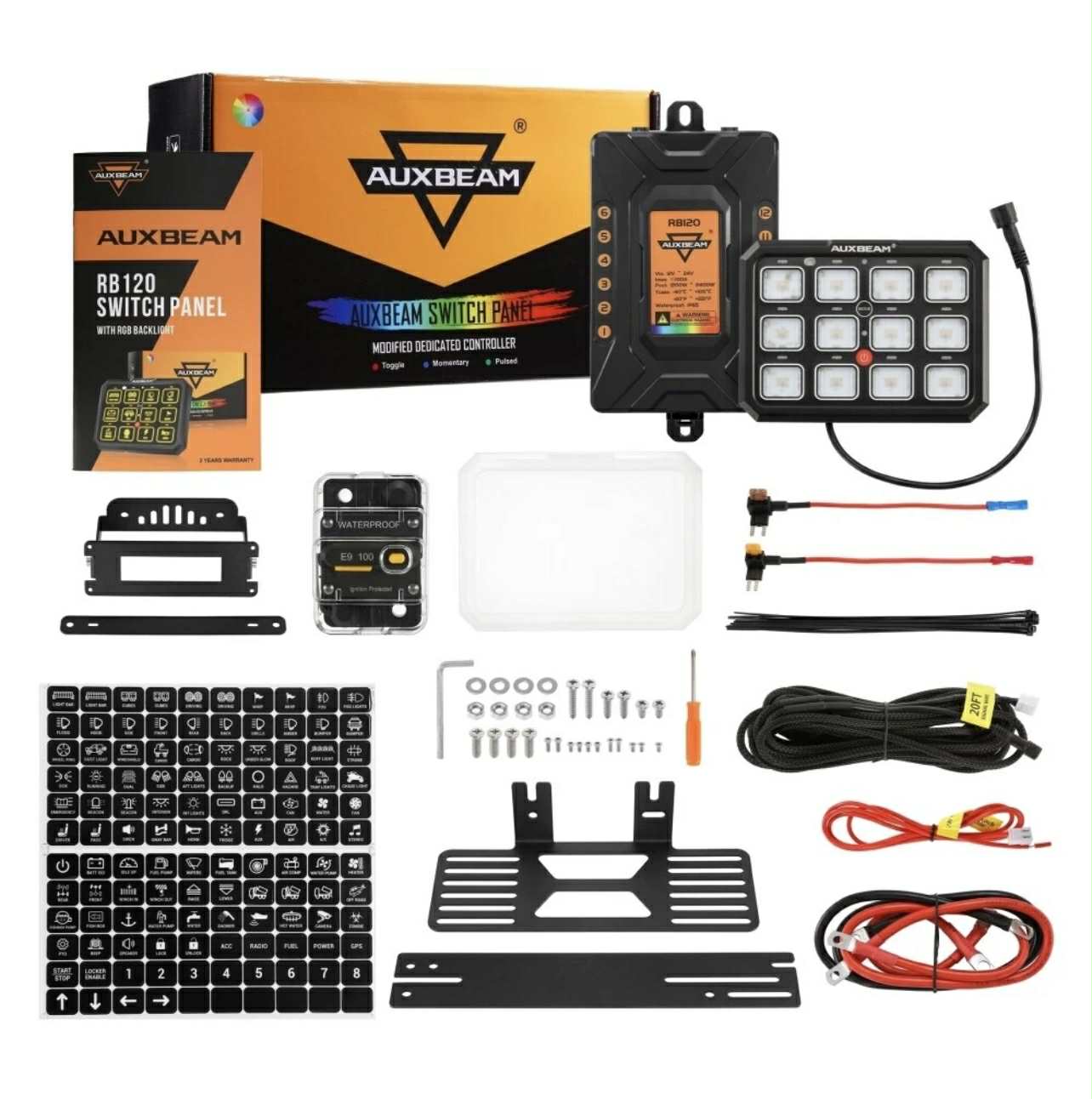

Package Includes:

1 x 12 Gang Switch Panel

1 x Circuit Control Box

1 x Circuit Breaker

1 x Mounting Bracket + Waterproof Cover

1 x 120pcs Labels (Decal)

1 x Power Harness

1 x Signal Wire (6M)

1 x Master Switch Power Cable

1 x Bag Allen Key/Screws/Nuts & Bolts

1 x Bag 4*Fuse

1 x Bag Screwdriver + Connector Wire

1 x Auxbeam Sticker

1 x Manual
